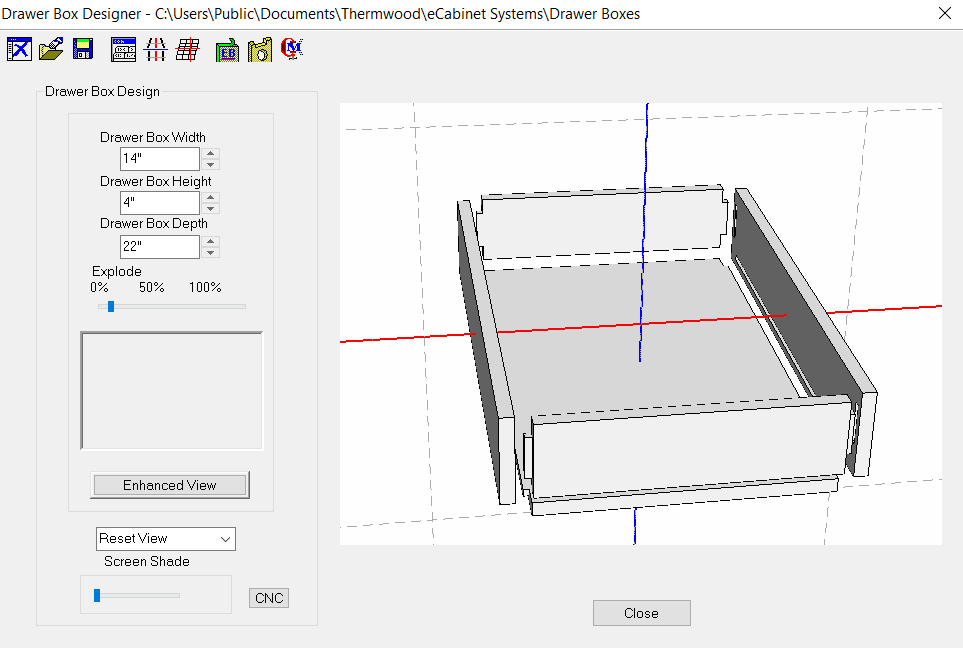

Created a new drawerbox and saved it. Made sure to specify it as MAKE IN HOUSE.
Want to edgeband the top edges of sides, front, and back, and when I try, I get the message "This cabinet does not have enough data to edgeband any of its parts."
Why can't I edgeband drawer parts
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
-
Gene Davis
- Junior Member
- Posts: 61
- Joined: Sat, Sep 02 2017, 7:30PM
- Company Name: Gene Davis Builder
- Country: UNITED STATES
Why can't I edgeband drawer parts
- Attachments
-
-
Thomas strembitsky
- Guru Member
- Posts: 301
- Joined: Fri, Jul 27 2012, 12:30PM
- Company Name: true form cabinets
- Country: CANADA
- Contact:
Re: Why can't I edgeband drawer parts
can you post the drawer box?
Intel(R) Core(TM) i-13700K @ 2.70GHz 32.00 GB RAM
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
-
Thomas strembitsky
- Guru Member
- Posts: 301
- Joined: Fri, Jul 27 2012, 12:30PM
- Company Name: true form cabinets
- Country: CANADA
- Contact:
Re: Why can't I edgeband drawer parts
can you post the drawer box?
Intel(R) Core(TM) i-13700K @ 2.70GHz 32.00 GB RAM
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
Windows 11 Professional 64-bit
http://www.trueform.ca
CS43 cnc
-
Rick Deskins
- Thermwood Team
- Posts: 858
- Joined: Tue, May 17 2005, 12:47PM
- Company Name: Thermwood
- Country: UNITED STATES
- Location: Thermwood
Re: Why can't I edgeband drawer parts
The drawer box body data is probably missing. Right Click and select Remove PE Cuts->From Entire Drawer Box, this will rebuild the body data for the drawer box.
Rick Deskins
-
Gene Davis
- Junior Member
- Posts: 61
- Joined: Sat, Sep 02 2017, 7:30PM
- Company Name: Gene Davis Builder
- Country: UNITED STATES
Re: Why can't I edgeband drawer parts
That was it, Rick. Thanks!
