door not getting profilfed randomly

[Thomas strembitsky]

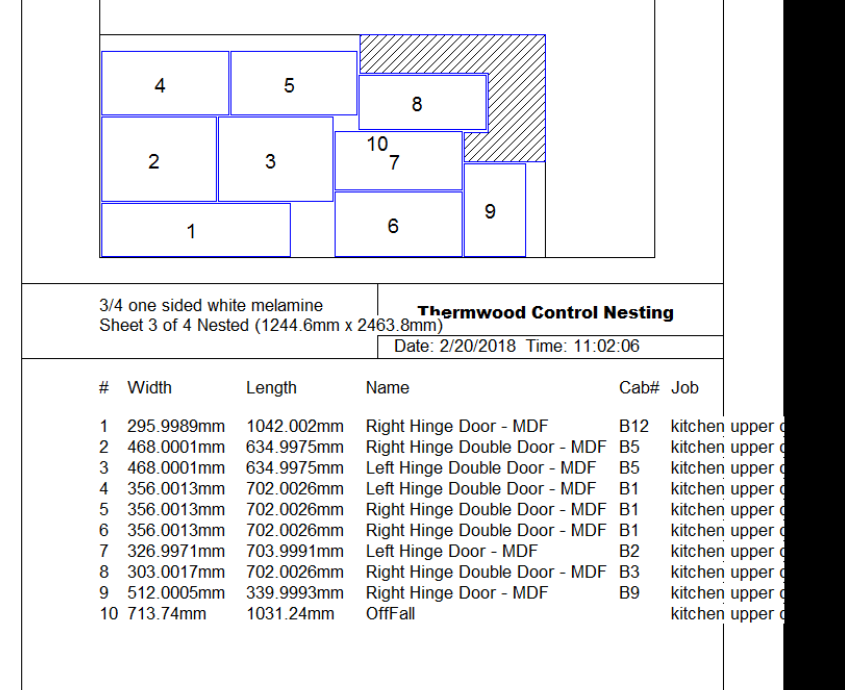

I was cutting some single pass mdf doors today and I had a 2 random doos get cut as a blanks with no profiling done to them... has anyone else had this happen? I'm attaching the picture of the nest along with the graph view showing it not getting a profile. also attaching the actual cnc code. I can give the ecabinets file and twd if needed

its part 4 keep in mind that the file is rotated 180 degrees

cnc file.zip

(8 KiB) Downloaded 622 times

[Tommy Wieler]

Thomas,

We had the same problem, where doors were randomly not getting profiled.
Are you using the latest version of Control Nesting? If so, TADA! Found your problem.
Seems like Thermwood messed up something in that update. We rolled back to the previous version, and problem was solved.

To roll back, just go back to your downloads folder and locate the installer for ControlNestingSetup_6.0.4.18. If you no longer have it, I could get you a copy.

[Thomas strembitsky]

okay ill roll back my version and keep an eye out for it happening

[Clint Buechlein]

I see the same here and will get it listed for the software engineers to look at.

Thomas,

We had the same problem, where doors were randomly not getting profiled.
Are you using the latest version of Control Nesting? If so, TADA! Found your problem.
Seems like Thermwood messed up something in that update. We rolled back to the previous version, and problem was solved.

To roll back, just go back to your downloads folder and locate the installer for ControlNestingSetup_6.0.4.18. If you no longer have it, I could get you a copy.

When did you notice the issue? The sooner we know there is an issue, the sooner we can correct it.

-Clint-

[Tommy Wieler]

When did you notice the issue? The sooner we know there is an issue, the sooner we can correct it.

Noticed this issue the first time we attempted modeling doors after the latest control nesting update
