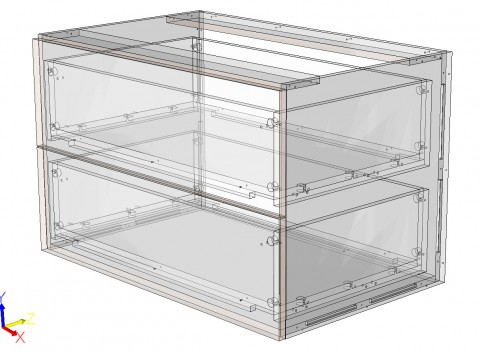

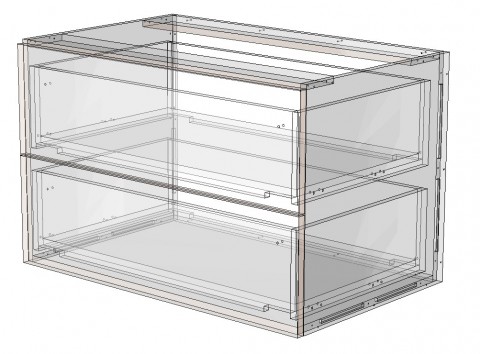

My drawer boxes are losing their rafix fittings every time I change something in the construction settings. I have to insert them again via Adj Features/Drawer Boxes with Drawer Fronts. This was happening before the update to 6.2.4 and still now.
Has anyone else found this to be a problem?
Is there a solution?
drawer box losing RTA fittings
Moderators: Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal, Jason Susnjara, Larry Epplin, Clint Buechlein, Scott G Vaal
-
alainalbert
- New Member
- Posts: 15
- Joined: Wed, Sep 17 2008, 12:40PM
- Company Name: Woodoer Inc
- Country: CANADA
- Contact:
drawer box losing RTA fittings
- Attachments
-
- Floating Vanity 2DR.hsf
- (1.41 MiB) Downloaded 1263 times
-
-
-
Ralph Balanik
- Senior Member
- Posts: 198
- Joined: Fri, Jul 30 2010, 5:33PM
- Company Name: Ralph Balanik
- Country: CANADA
Re: drawer box losing RTA fittings
I would try using the drawer box designer to build a drawer with rafix fitting and save it to "my Drawers" or whatever. Then when you build a cabinet choose your drawer style from the drawer library. That may lock your rafix construction settings rather than setting them up each time you want that feature. I have done other geometry in drawer designer and it has stayed intact whenever I choose it from my drawer library so it may work for the rafix construction as well.
-
alainalbert
- New Member
- Posts: 15
- Joined: Wed, Sep 17 2008, 12:40PM
- Company Name: Woodoer Inc
- Country: CANADA
- Contact:
Re: drawer box losing RTA fittings
Hi Ralph. thanks for the reply. Unfortunately, these drawers were done in the drawer designer and saved to my drawers with the rafix fittings baked in. there is no reason that they should disappear and in fact, the pre-drilled screw hole which is another RTA fastener I the same drawer is not lost, only the rafix geometry... Strange
