How to get the screw holes for through-fastening between lock tenons?

Gene Davis · Post by **Gene Davis** » Mon, Aug 16 2021, 6:55PM

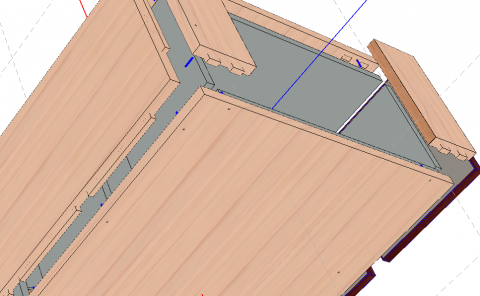

I can generate pocket holes between lock tenons, but how to do those for through-screws. See the pic from a cab I got from a production share shop.

Is this all manually done and then set up for seed cab sizing using constraints? Seems tedious if that is the only way.

Scott Marshburn · Post by **Scott Marshburn** » Mon, Aug 16 2021, 7:48PM

I have a kD hole pattern that I use for this. I modified an existing kd pattern by removing the cam hole and changing the pinhole to the depth and diamenter for the through-hole.

Scott Marshburn · Post by **Scott Marshburn** » Mon, Aug 16 2021, 8:14PM

here is the pattern file that I use for .75 materials

p75matpilothole.zip: (1.56 KiB) Downloaded 802 times

http://www.thermwood.com/forums/downloa ... w&id=16960
