Part Editor

Paul Amos · Post by **Paul Amos** » Tue, Apr 14 2009, 10:07AM

I am trying to create an arched cutout to a L/R stretcher but the Part Editor says that this part type is not supported .....Any suggestions.

Thanks

Paul

Nick M Singer · Post by **Nick M Singer** » Tue, Apr 14 2009, 10:16AM

Make the stretcher out of a display panel

Rick Deskins · Post by **Rick Deskins** » Tue, Apr 14 2009, 10:17AM

Wait for v6, or use a display panel instead of a stretcher. (Note: display panel will not resize when the cabinet resizes).

Paul Amos · Post by **Paul Amos** » Tue, Apr 14 2009, 10:41AM

Thanks for the quick response,

I will have to use it with the stretcher and blind dado's so that it resizes with the cabinet, then re-machine the arch after.

What is planned for V6 and when will it be released ? No pressure.

Thanks

Paul

Rick Palechuk · Post by **Rick Palechuk** » Tue, Apr 14 2009, 2:15PM

Post your cabinet Paul, maybe there is something else that can be done.

Rick Deskins · Post by **Rick Deskins** » Tue, Apr 14 2009, 2:24PM

Paul Amos wrote:What is planned for V6 and when will it be released ? No pressure.

http://www.thermwood.com/forums/viewtop ... f=3&t=9042

Paul Amos · Post by **Paul Amos** » Wed, Apr 15 2009, 11:44AM

Rick Palechuk wrote:Post your cabinet Paul, maybe there is something else that can be done.

Rick,

Here is the cabinet, the L/R section will have doors the center section is open with an arched rail.

Any suggestions would be appreciated.

Paul

JohnLashuay · Post by **JohnLashuay** » Wed, Apr 15 2009, 1:36PM

Paul,

As was mentioned before, your best bet is to use a display panel or display cube and take it to the part editor.

Good Luck!
-John

Kerry Fullington · Post by **Kerry Fullington** » Wed, Apr 15 2009, 6:17PM

Paul

I used a sheet stock face frame and removed everything but the top rail with some insets. I also used negative insets on the left and right sides as well as the deck and toe kick.

: arch_01.jpg (163.97 KiB) Viewed 11915 times

The arch has constraints so you can re-size.

: arch_02.jpg (177.66 KiB) Viewed 11913 times

I forgot to do your top like you have it.

I couldn't open your job file, it is only 12 KB

Kerry

Kerry Fullington · Post by **Kerry Fullington** » Wed, Apr 15 2009, 6:37PM

Here is a shot with the top overhang

: arch_03.jpg (189.42 KiB) Viewed 11906 times

Paul Amos · Post by **Paul Amos** » Thu, Apr 16 2009, 1:58AM

Kerry,

Thank you, that is exactly what I was looking for.

Paul

JohnLashuay · Post by **JohnLashuay** » Thu, Apr 16 2009, 8:00AM

Way to go Kerry!! All the rest of the posts say it can't be done and you prove us wrong.

Great work as usual

-John

Rick Deskins · Post by **Rick Deskins** » Thu, Apr 16 2009, 8:04AM

The only thing the face frame solution does not allow is the blind dados. keep this in mind.

George Davidson · Post by **George Davidson** » Thu, Apr 16 2009, 10:09AM

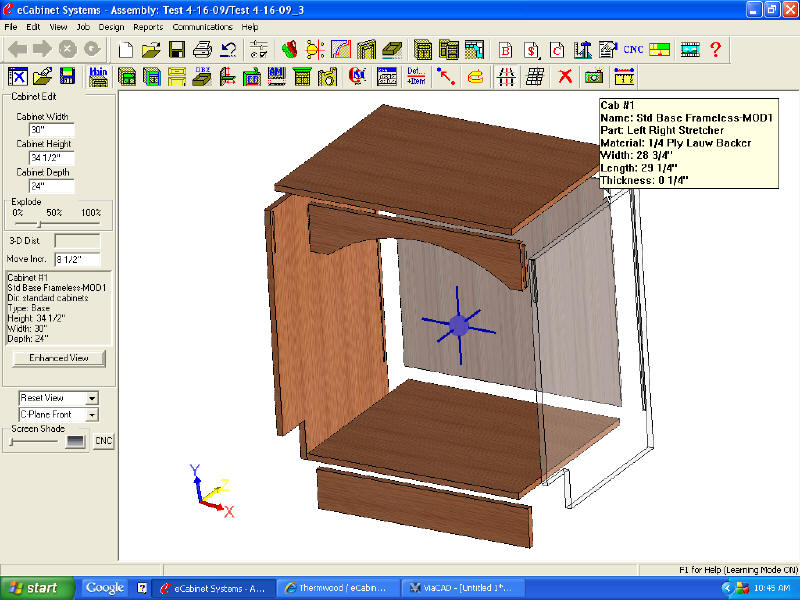

Would this help

Paul Amos · Post by **Paul Amos** » Thu, Apr 16 2009, 10:40AM

Hi George,

What part did you create it from ?
Did you use the contour editor to create the shape ?

Many thanks

Paul
