Kerry is correct about removing the edge banding however it looks like you are using a 0-thickness banding because you are using a pre-mill edge bander and want to show that the part gets banded as well as get costing for estimating. the file that I uploaded earlier worked fine before I saved it. I ...

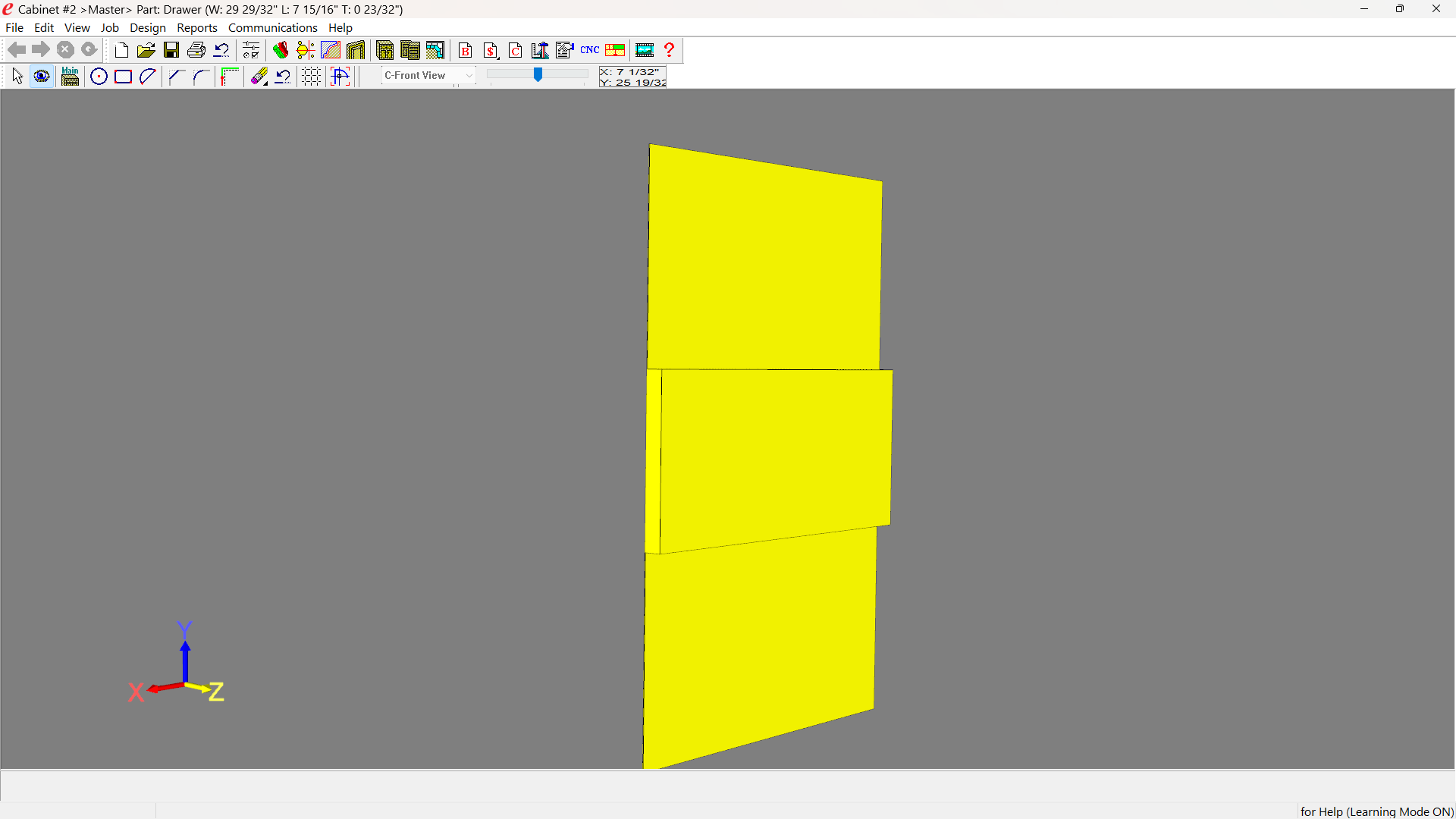

I am unsure what is going on with that top drawer, but this is what it looked like

It behaves for me as I outlined above. I will post the cabinet that I modified.

Try removing the top drawer and adding it back then reapply the profile take it into the constraints manager and constrain the profile by right-clicking the Dark green edge with the profile then hovering over cut path attachment and selecting attach you may still need to constrain the 1/8 over cut ...

Hi Ingbert. It looks like the drawer fronts have edge banding. you might try adding drawer fronts with no banding. If you want to contact me we can do a video call and see if we can work out the issue

Can you post the cabinet that is giving you the problem

I guess that for now, we will have to keep using the setup that we have in place for single-panel doors and continue to use dxf files and/or vetric for multi-panel and multi-light glass doors.

Thanks, Mark. but that is a link to the profile modeler manual. I may have misread the description of the integrated profile modeler. I was thinking/ hoping that they were giving us a way to generate multiple regions and use off-the-shelf tooling (like I described earlier) to achieve the same ...

Thanks, Mark.
The shop that I am working with is running version 6.2. They are using the MDF door tool options section to set a tool for profile 1 and a tool for profile 2 then the default tool group in the profile modeler is set up with a one-eighth-inch end mill. The tool for profile one raises ...

I have a client who wants me to help them with setting up and using the new integrated profile modeler could anyone help me out with this. from the way I understand it they would be able to use mutable tools to create profiles for multiple regions for example a 1 piece raised panel door using 3 ...

That’s correct

I just updated to 6.2.12.1 and went to see if there was anything new added but there is no help manual for v 6.2.12 or v 6.2.12.1

thanks Clint everything is good now

I updated to the newest version through the dialog that popped up when I opened cabinets this morning. That must have been the problem because after reading the replies I uninstalled cabinets and then downloaded the latest build from the link on the forum then reinstalled now everything works fine

Just updated to latest version and can not find any documentation on how to use this new feature could someone please elaborate on how to utilize this I do not see any settings etc. when nesting
