The CabinetShop Series combines all the elements needed for a custom cabinet shop to design and machine custom cabinets, custom furniture and support products.

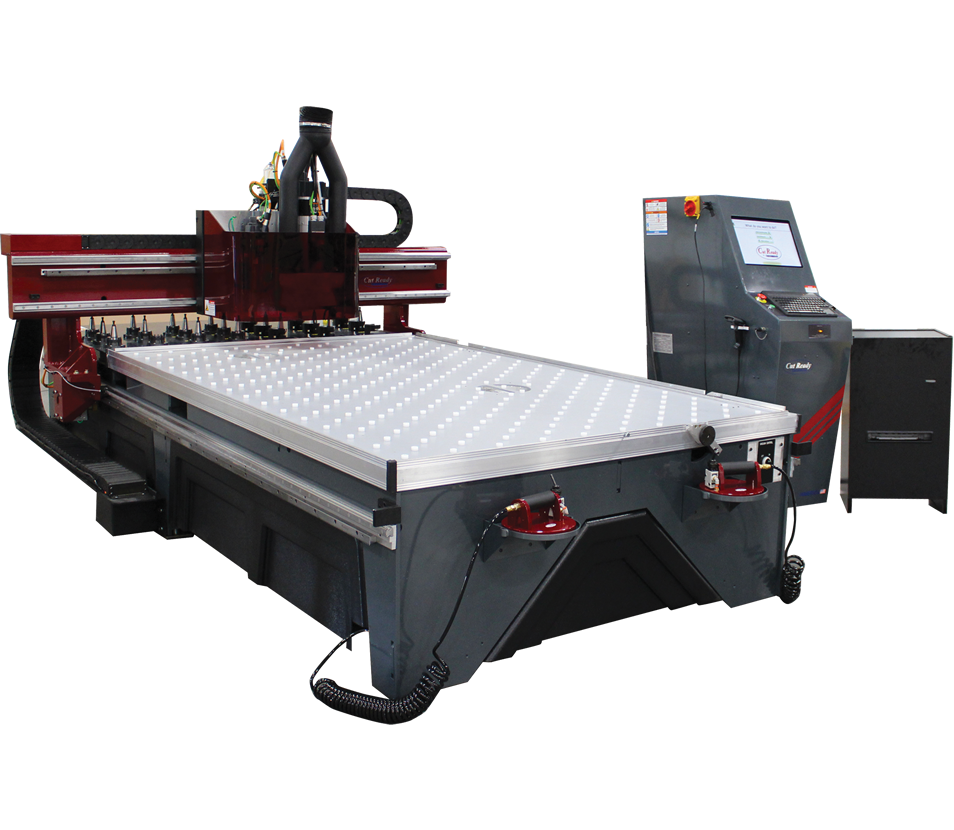

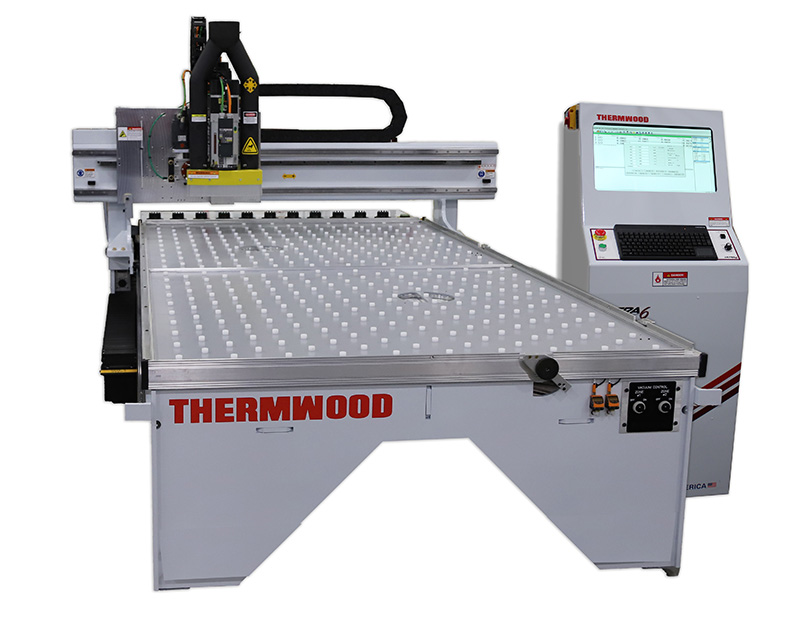

CABINETSHOP 43

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure
Appearance
Performance

Construction:	Interlocked Engineered Structural Steel - Fully Stress Relieved


Table Size(s):	61” x 121” Fixed w/Automatic Sheet Location Stops
	5' × 20' Fixed w/ Automatic Sheet Location Stops
	48” x 96” Fixed w/Automatic Sheet Location Stops
	4' × 8' Fixed w/ Automatic Sheet Location Stops

Vacuum:	Universal Vacuum 1 or 2 Zone

Spindle HP:	12 HP HSD Spindle (3,000-24,000 RPM)
	18 HP HSD Spindle (3,000-24,000 RPM - Available 45, MTR)

Tool Changer:	11 Position Automatic Tool Changer

Tool Length Measurement:	Automatic Tool Length Measurement

Servo Drives:	Siemens Intelligent Servo Drives Throughout

Axis Alignment Verification:	Three-Dimensional Laser Compensated

Control:	Thermwood QCore SuperControl
	QuickCut Ready
	Job Level Compatible with 20-20 Technologies, Cabinetvision, Cabinetware, KCD Software, Microvellum and eCabinet Systems
	Tool Management
	Maintenance Tracking
	Virtual Service Compatible

CabinetShop 43 Dimensions

Front

Side

Top

Click Here to View the CabinetShop 43 Brochure in Adobe .pdf format

CabinetShop 43 Accent Colors

The CabinetShop 43 is available with any of five accent colors on the transparent tooling shield and control side panel. A sheet metal control side panel (in painted machine color) is also available in place of the accent colored control side panel.



Ruby Red	Copper Gray	Cobalt Blue	Tech Orange	Green Glass

CabinetShop 43 Performance Videos

The CabinetShop 43 offers premium performance not normally seen at this price point. For example, it has positioning speeds to 3,180 inches per minute and programmed cutting speeds to 2,250 Inches per minute. The actual speed at which you can cut is determined more by tooling and material than by the machine, but its speed is indicative of the overall solid CNC performance of the CabinetShop 43.

Here are some videos showing this amazing performance:

Carving

Cabinet Cutting

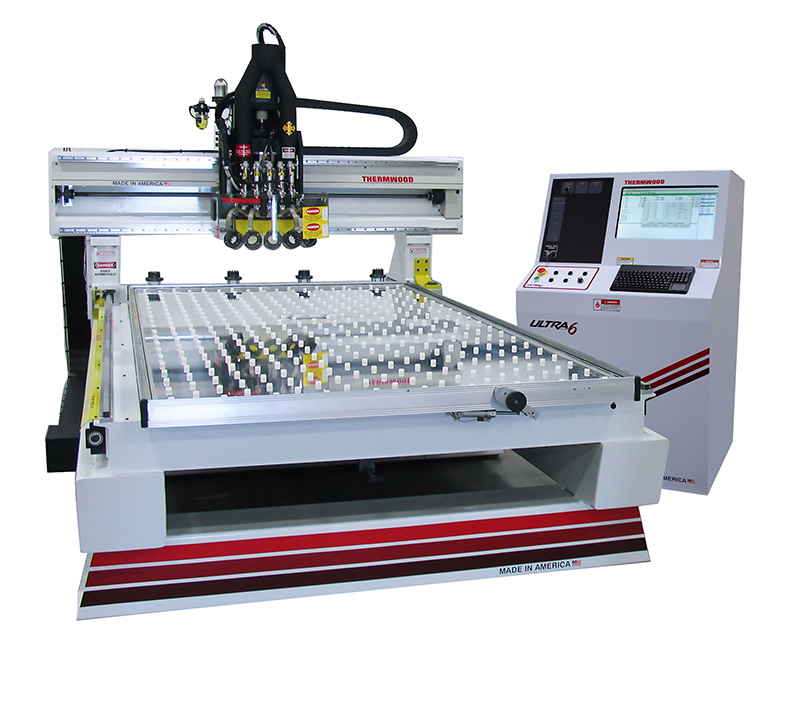

CABINETSHOP 45

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Construction:	Engineered Structural Steel - Fully Stress Relieved

Table Size:	5×5, 5x10, 5x12, 6x12, 7x12 Fixed w/Auto Sheet Location Stops

Vacuum:	Universal Vacuum

Spindle HP:	12 HP HSD Spindle (3,000-24,000 RPM)
	18 HP HSD Spindle (Optional - as well as other sizes)

Tool Changer:	4 Position Bar Style Tool Changer (At the Head Typewriter Changer Available)

Tool Length Measurement:	Automatic Tool Length Measurement

Servo Drives:	Siemens Intelligent Servo Drives Throughout

Axis Alignment Verification:	Three-Dimensional Laser Compensated

Control:	Thermwood QCore SuperControl
	QuickCut Ready
	Job Level Compatible with 20-20 Technologies, Cabinetvision, Cabinetware, KCD Software, Microvellum and eCabinet Systems
	Tool Management
	Maintenance Tracking
	Virtual Service Compatible

CabinetShop 45 Dimensions

Front

5×10 Side

5×10 Top

5×12 Side

5× 12 Top

6×12 Side

6×12 Top

7×12 Side

7×12 Top

Click Here to View the CabinetShop Series Brochure in Adobe .pdf format

CABINETSHOP MTR

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure

Construction:	Engineered Structural Steel - Fully Stress Relieved

Table Size:	5×10 (1.52 meters × 3 meters), 7×12 (2.1 × 3.6 meters), 7×20 (2.1meters × 6 meters)

Vacuum:	Universal Vacuum

Spindle HP:	10 HP HSD Spindle (3,000-24,000 RPM)

Tool Changer:	14 Position Bar Style Tool Changer (At the Head Typewriter Changer Available)

Tool Length Measurement:	Automatic Tool Length Measurement

Servo Drives:	Siemens Intelligent Servo Drives Throughout

Axis Alignment Verification:	Three-Dimensional Laser Compensated

Control:	Thermwood QCore SuperControl
	QuickCut Ready
	Job Level Compatible with 20-20 Technologies, Cabinetvision, Cabinetware, KCD Software, Microvellum and eCabinet Systems
	Tool Management
	Maintenance Tracking
	Virtual Service Compatible

CabinetShop MTR Dimensions

5×10

7×12

Click Here to View the CabinetShop Series Brochure in Adobe .pdf format

QCore Control System

Nested Based Manufacturing Systems

The Multi-Purpose Three Axis Series are highly flexible, making them ideal for a variety of manufacturing applications.

MULTI-PURPOSE 40

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	4×8, 5×5, 5×8, 5×10, 5×12, 7×10
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)

Multi-Purpose 40 Dimensions

Front

4×8 Side

4×8 Top

5×5 Side

5× 5 Top

5×8 Side

5×8 Top

5×10 Side

5×10 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

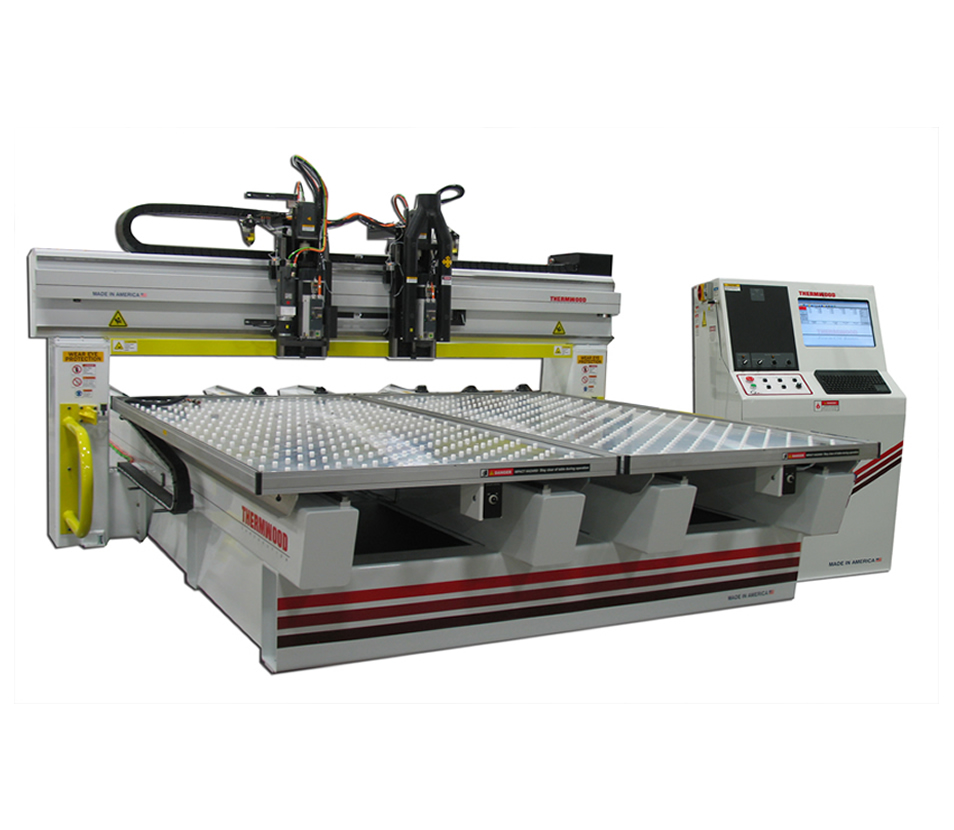

MULTI-PURPOSE 42

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure

Table Size(s)	Single Table: 10×5 Dual Tables: 5×5, 5×8, 5×10, 5×12
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)

Multi-Purpose 42 Dimensions

10×5 Side

10×5 Top

5×5 Front

5×5 Side

5×5 Top

5×8 Side

5×8 Top

5×10 Front

5×10 Side

5×10 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

MULTI-PURPOSE 43

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Appearance
Brochure

Construction:	Interlocked Engineered Structural Steel - Fully Stress Relieved


Table Size(s):	61” x 121” Fixed w/Automatic Sheet Location Stops
	5' × 20' Fixed w/ Automatic Sheet Location Stops
	48” x 96” Fixed w/Automatic Sheet Location Stops
	4' × 8' Fixed w/ Automatic Sheet Location Stops

Vacuum:	Universal Vacuum 1 or 2 Zone

Spindle HP:	12 HP HSD Spindle (3,000-24,000 RPM)

Tool Changer:	11 Position Automatic Tool Changer

Tool Length Measurement:	Automatic Tool Length Measurement

Servo Drives:	Siemens Intelligent Servo Drives Throughout

Axis Alignment Verification:	Three-Dimensional Laser Compensated

Control:	Thermwood QCore SuperControl
	QuickCut Ready
	Job Level Compatible with 20-20 Technologies, Cabinetvision, Cabinetware, KCD Software, Microvellum and eCabinet Systems
	Tool Management
	Maintenance Tracking
	Virtual Service Compatible

MultiPurpose 43 Dimensions

Front

Side

Top

Multi-Purpose 43 Accent Colors

The Multi-Purpose 43 is available with any of five accent colors on the transparent tooling shield and control side panel. A sheet metal control side panel (in painted machine color) is also available in place of the accent colored control side panel.



Ruby Red	Copper Gray	Cobalt Blue	Tech Orange	Green Glass

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

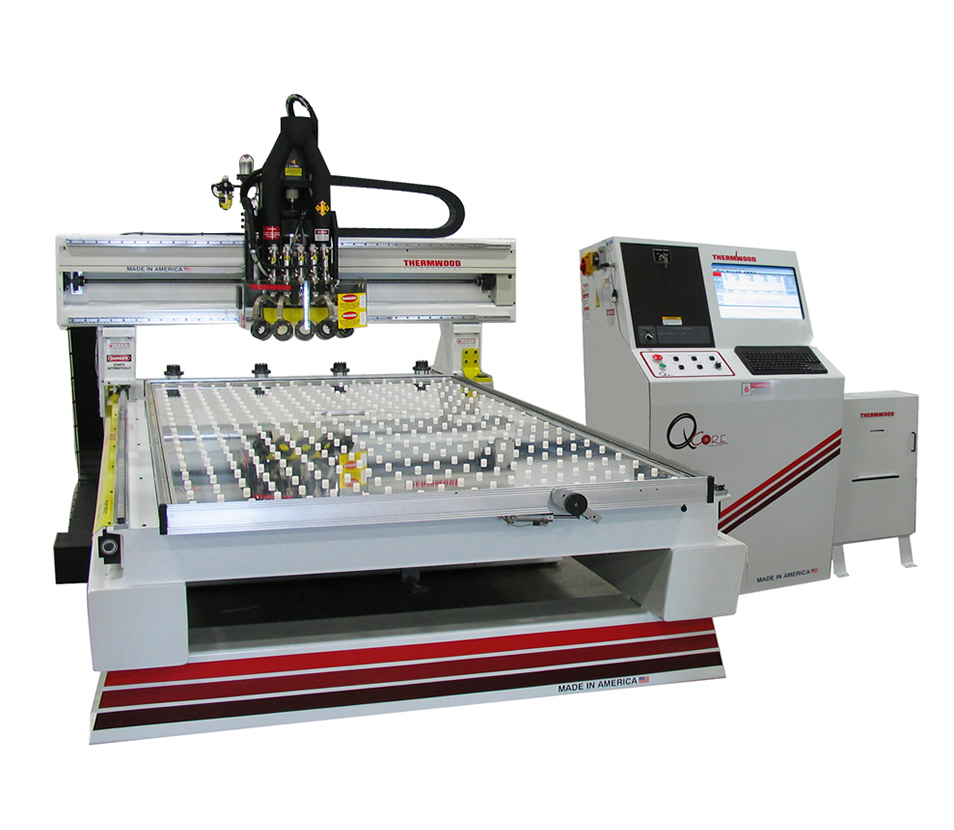

MULTI-PURPOSE 45

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	5×5, 5x10, 5x12, 6x12, 7x12 Fixed w/Auto Sheet Location Stops
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)
	18 HP HSD Spindle (Optional - as well as other sizes)

Multi-Purpose 45 Dimensions

5×10 Front

5×10 Side

5×10 Top

5×12 Side

5×12 Top

6×12 Side

6×12 Top

7×12 Side

7×12 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

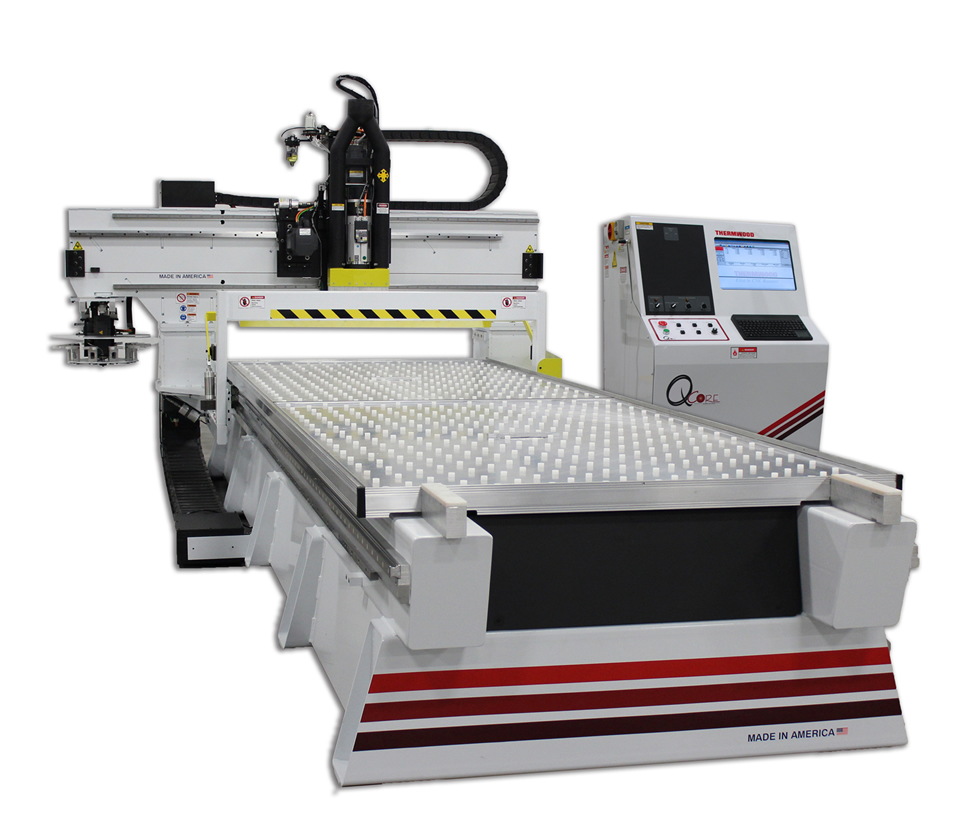

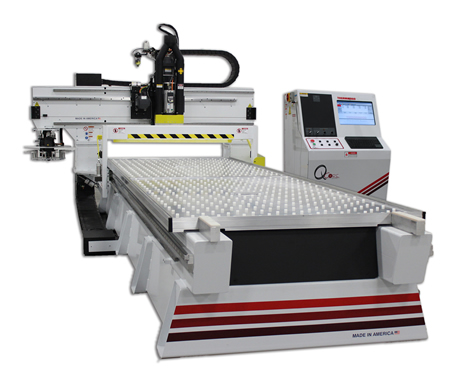

MULTI-PURPOSE 53

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	5×10, 5×12, 5×16, 5×20 (Dual Table)
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)

Multi-Purpose 53 Dimensions

Front

5×10 Side

5×10 Top

5×12 Side

5×12 Top

5×16 Side

5×16 Top

5×20 Side

5×20 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

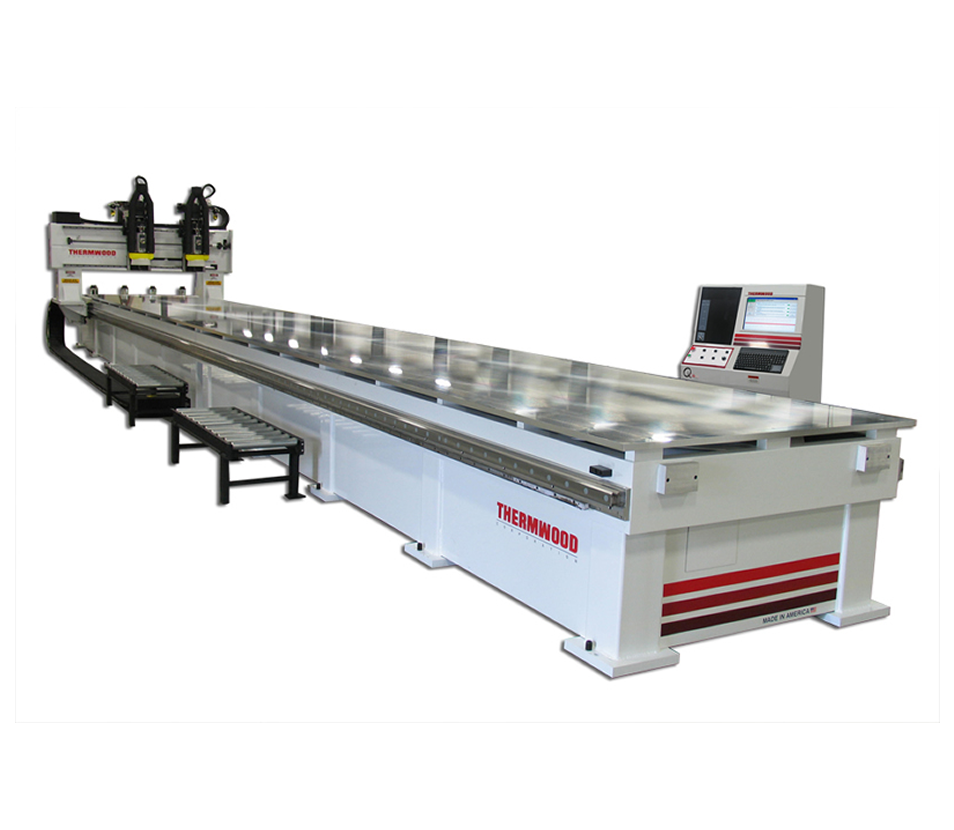

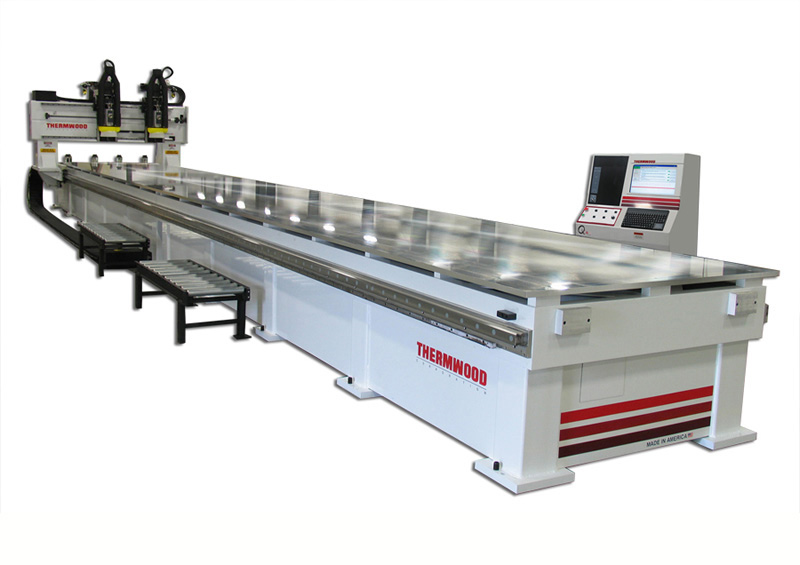

MULTI-PURPOSE 63

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	5×20, 5×40 (5×10 and 5×20 base extensions available)
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)

Multi-Purpose 63 Dimensions

5×20 Front

5×20 Side

5×20 Top

5×40 Front

5×40 Side

5×40 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

MULTI-PURPOSE MTR

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure

Table Size(s)	5×10 (3 meters), 7×12 (3.6 meters)
Spindle HP	12 HP HSD Spindle (3,000-24,000 RPM)

Multi-Purpose MTR Dimensions

5×10

7×12

7×20 Front

7×20 Side

7×20 Top

Click Here to View the Multi-Purpose Series Brochure in Adobe .pdf format

QCore Control System

Nested Based Manufacturing Systems

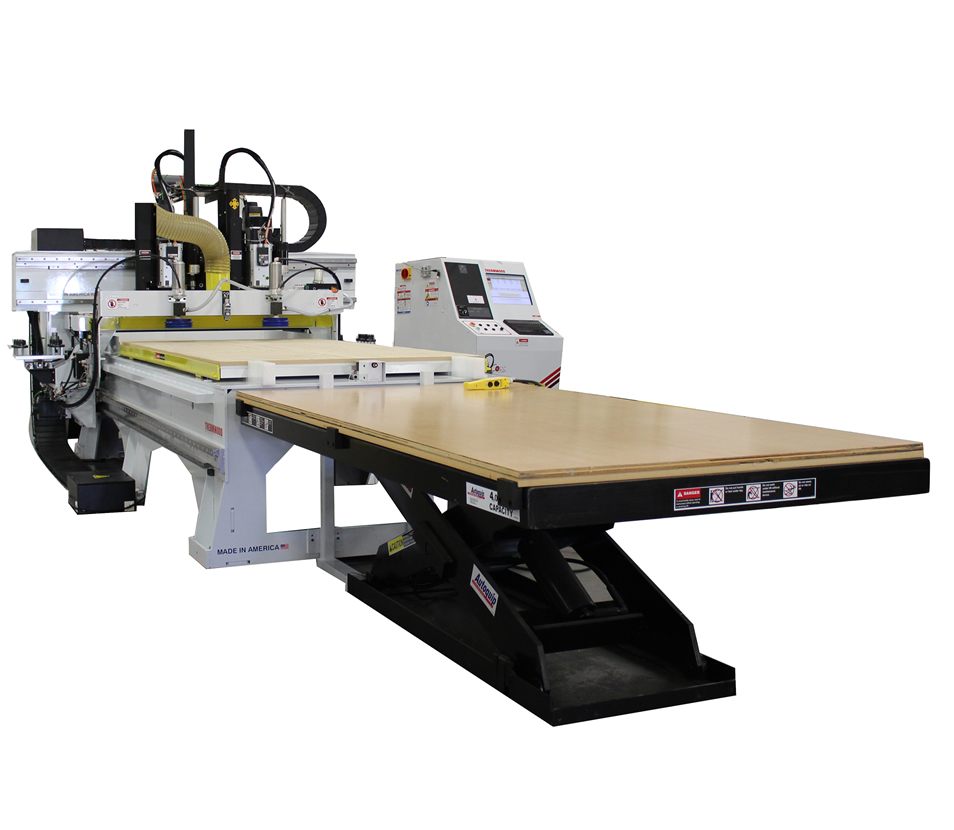

The FrameBuilder Series combine all the elements needed to machine nested upholstered frame parts from sheet stock.

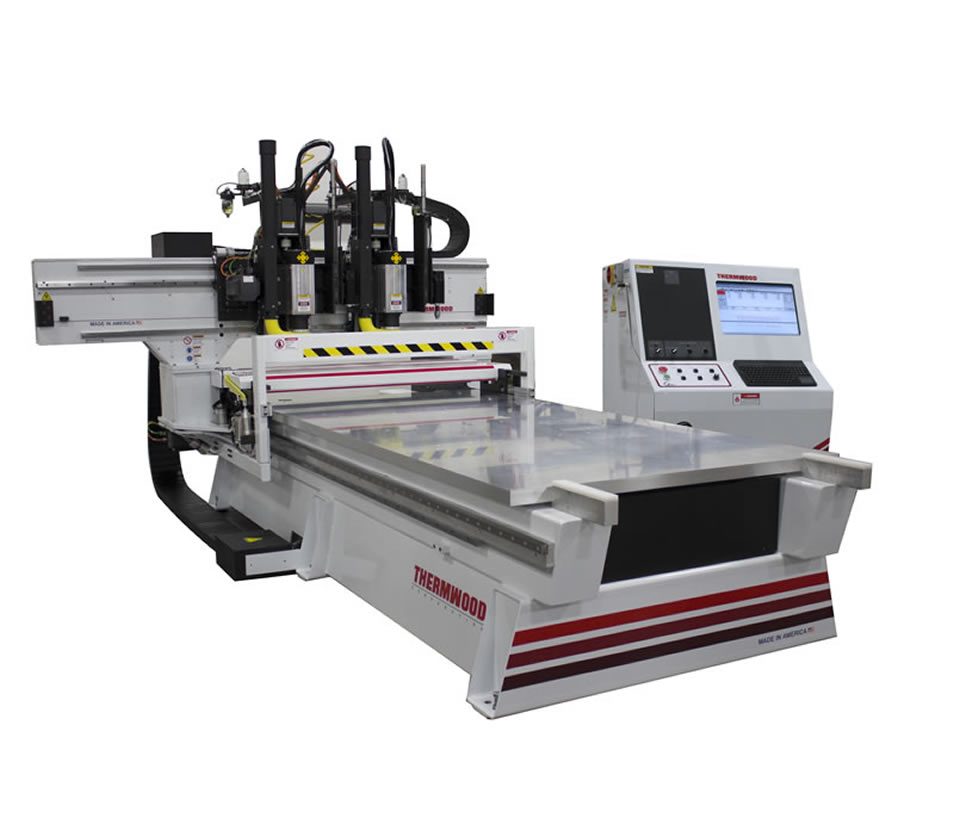

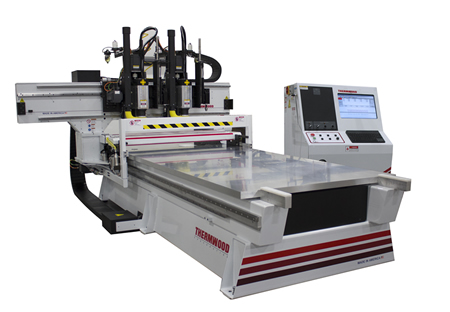

FRAMEBUILDER 53

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	5×10, 5×12, 5×16, 5×20
Spindle HP	18 HP HSD Spindle (3,000-24,000 RPM)

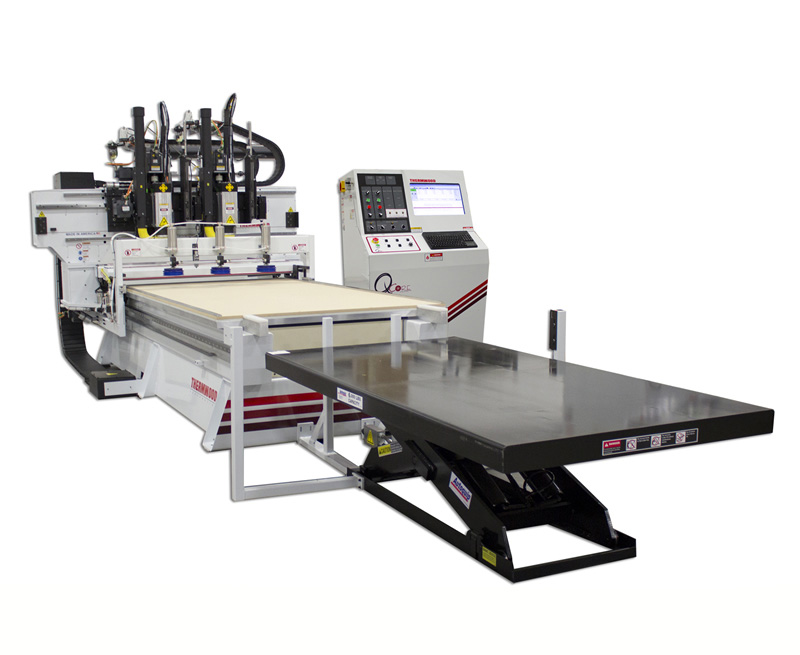

Optional	Optional At-the-Head Typewriter Style Tool Changer Available Roller Hold Down - Optional Automatic Load and Unload Available

FrameBuilder 53 Dimensions

5×10 Side

5×10 Top

5×12

5×16

5×20

Click Here to View the FrameBuilder 53 Brochure in Adobe .pdf format

QCore Control System

Nested Based Manufacturing Systems

The CarvingShop Series combines all the elements needed to program and run three dimensional wood carvings.

CARVINGSHOP 83

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure

Table Size(s)	5×10 (More table sizes available)
Spindle HP	Multiple 10 HP HSD Spindle (3,000-24,000 RPM)

CarvingShop 83 Dimensions

5×10 Side

5×10 Front

Click Here to View the CarvingShop Series Brochure in Adobe .pdf format

CARVINGSHOP 80

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Multimedia
Brochure

Table Size(s)	14×56
Spindle HP	Multiple 10 HP HSD Spindle (3,000-24,000 RPM)

CarvingShop 80 Dimensions

Front

Side

Top

Click Here to View the CarvingShop Series Brochure in Adobe .pdf format

QCore Control System

The SignRouter Series - This I-Cut compatible system trims printed graphics on rigid substrates such as foam board, plastic, acrylic, fiberglass/composites, wood and non-ferrous metals. It also machines store fixtures made from materials such as wood, plywood, MDF, chipcore, plastic, acrylic and non-ferrous metals.

SIGNROUTER 43

CLICK FOR MORE INFORMATION

Tech Specs
Dimensions
Brochure

Table Size(s)	5×10 (More table sizes available)
Spindle HP	Multiple 10 HP HSD Spindle (3,000-24,000 RPM)

SignRouter 43 Dimensions

Front

Side

Top

Click Here to View the SignRouter 43 Brochure in Adobe .pdf format

Click Here to View the SignRouter 43 Flyer in Adobe .pdf format

SIGNROUTER 45

CLICK FOR MORE INFORMATION

Table Size(s)	5×10, 5×12, 6×12, 7×12
Spindle HP	10 HP HSD Spindle (3,000-24,000 RPM)

QCore Control System
