PLASTIC SHEETS - SOLID SURFACE - NON-FERROUS - NESTED BASED - COMPOSITES
MODEL 43
High-performance three axis for nested-based applications
Engineered for Versatility and Profitability
The Model 43 is built to handle a wide range of materials and applications, boosting your shop's efficiency, material yield, and overall profitability.
Maximize Material Yield
With table sizes up to 5'x20' and integrated Control Nesting software, you can process full-sized sheets with optimized layouts to reduce waste.
High-Speed Performance
A powerful 12 HP spindle and rapid indexing speeds of 2,800 IPM mean you can produce more parts in less time without sacrificing quality.
Uncompromising Quality
Features like automatic tool changing, laser-compensated axis alignment, and the robust Thermwood SuperControl ensure every job is accurate and repeatable.

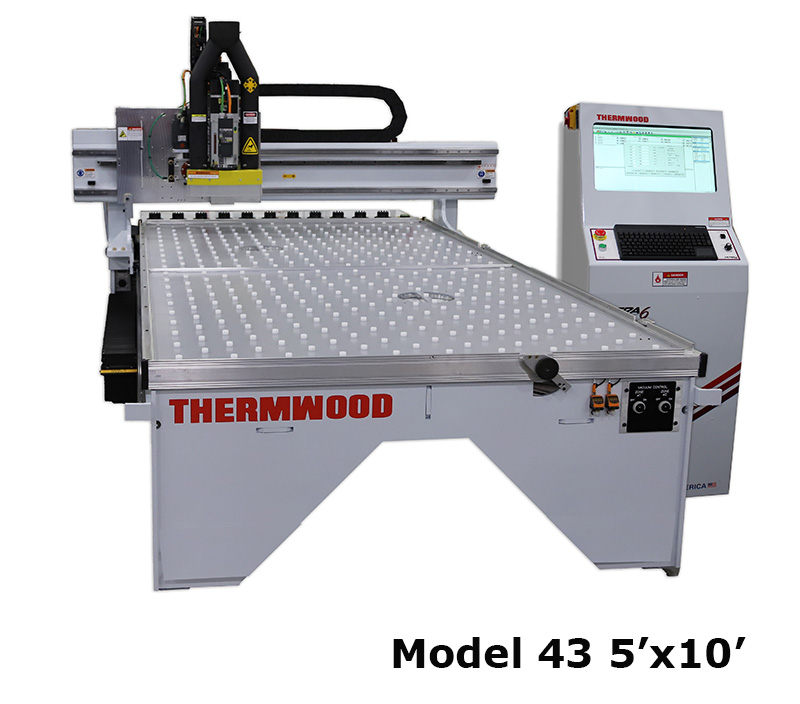

MODEL 43
High-performance three axis made from fully stress-relieved structured steel for nested-based custom cabinets, custom furniture, plastics, composites and other support products.
Available Table Sizes: 4'x'8', 5'x10', 5'x12', 5'x20'
5'x10' & 5'x12' (21 tooling positions and dual pipe dust collection)
Speed: Indexes at 2,800 IPM Standard
Core Performance
- 12 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Steel High Flow Table with Moving Gantry
- Universal Vacuum 1 or 2 Zone(s)
Automation & Efficiency
- 11 Position Bar Style Automatic Tool Changer (on 4'x8' and 5'x10' sizes)
- Automatic Tool Length Measurement
- Automatic Programmable Pop-Up Pins
- Control Nesting for Better Yield
Precision & Control
- Three-Dimensional Laser Compensated Axis Alignment
- Intelligent Servo Drives Throughout
- Thermwood SuperControl with Smart Router Technology
Support & Training
- Machine Training and Installation
- Free Lifetime Phone, Forum and Email Support
- Lifetime Machine Support from Thermwood's Legendary Service and Support
Available Options
- 21 Position Bar Style Automatic Tool Changer
- Unload Rake System
- Full Table Rake w/Integrated Dust Collection (on 4'x8' and 5'x10' sizes)
- Personal Pause Fob
- Pause Mats
- Automatic Labeler
- Automatic Lubrication System

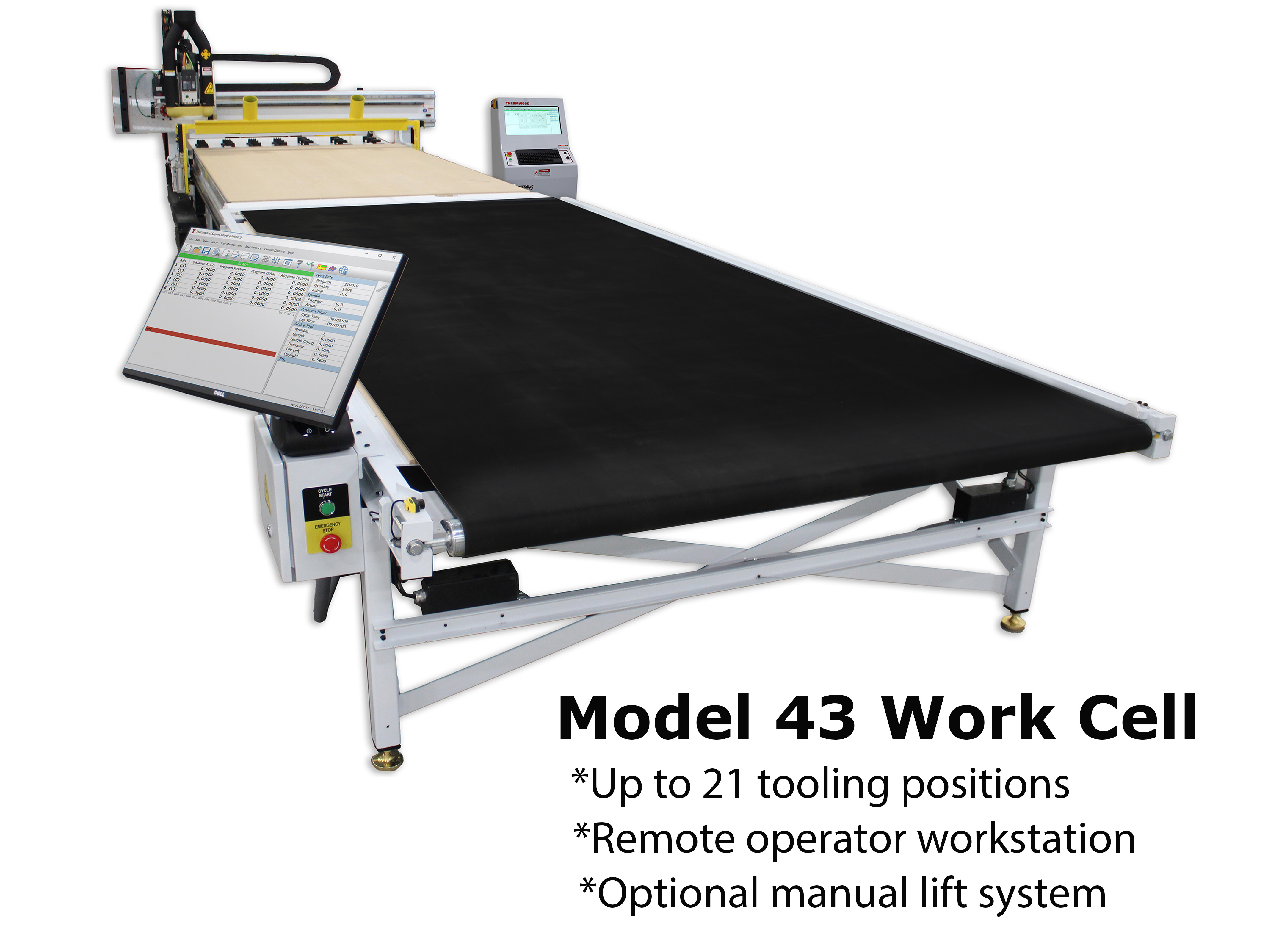

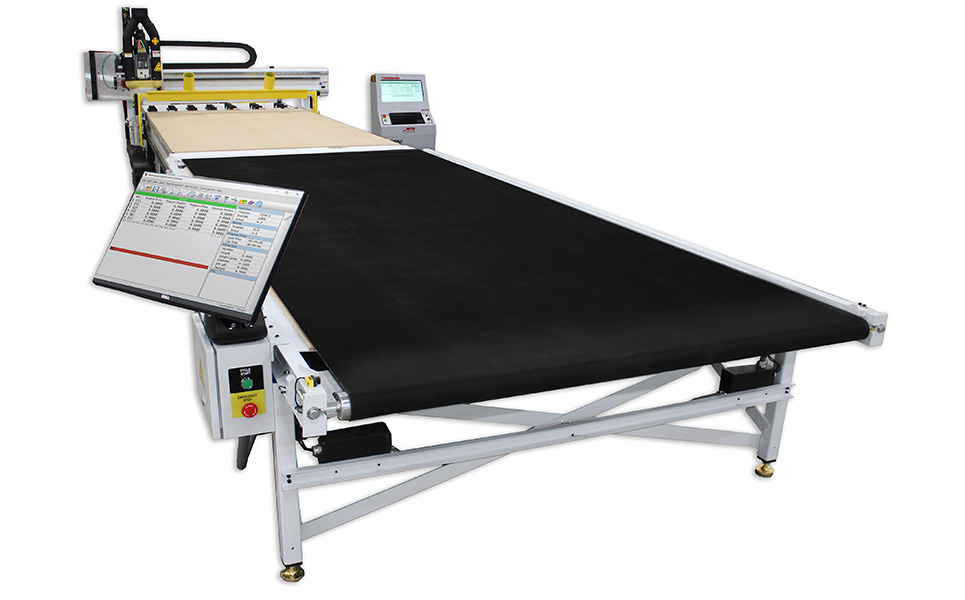

MODEL 43 NESTED BASED WORK CELL PACKAGE:
Complete nested-based CNC routing system with smart-router technology, designed for custom cabinet, closet, and furniture builders. Ideal for producing cabinet and closet boxes, drawer boxes, doors and drawer fronts, and custom moldings.
Available Table Sizes:
5'x10' (with up to 21 tooling positions and dual pipe dust collection)
Speed: Indexes at 2,800 IPM Standard
Core Performance
- 12 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Steel High Flow Table with Moving Gantry
- Dual Hi Flow Vacuum Zones
Automation & Efficiency

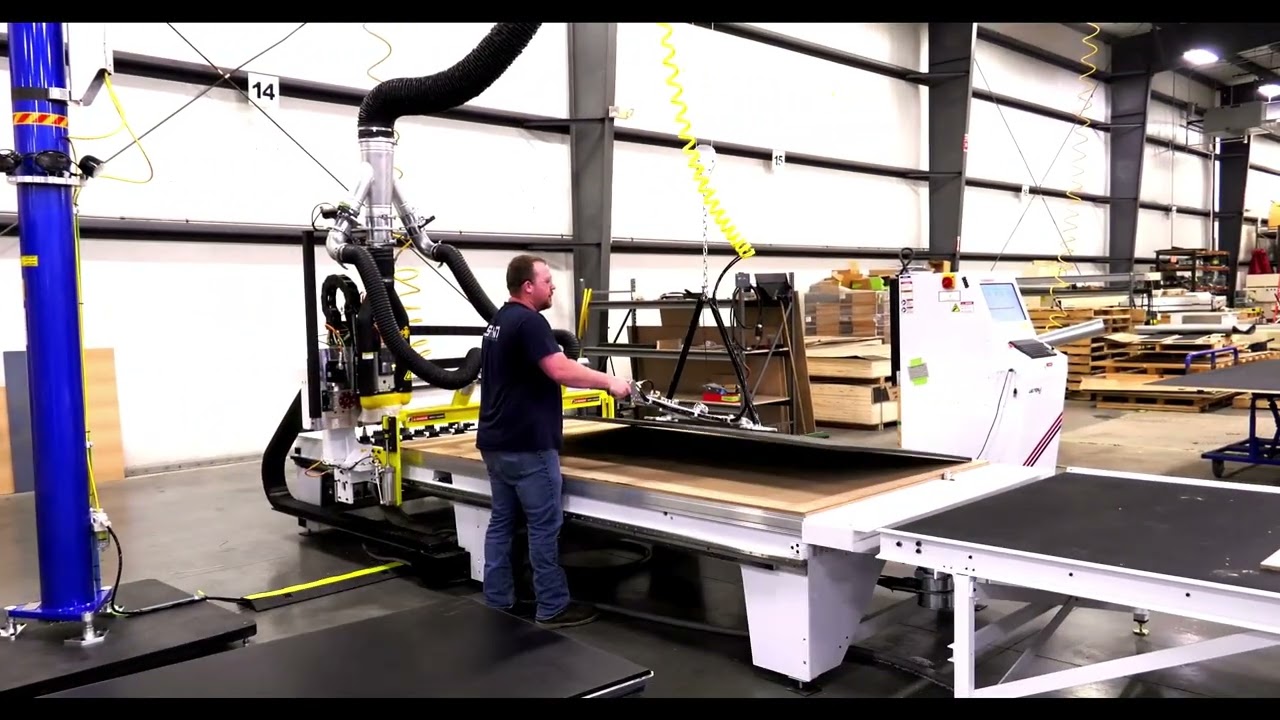

- Manual Lift System with automatic sequence light sheet locator system
- 21 Position Bar Style Automatic Tool Changer
- Automatic High Tolerance Tool Length Measurement
- Automatic Programmable Pop-Up Pins
- Full Table Off-Load Rake w/Integrated Dust Collection
- Powered Out-Feed Conveyor (61"x144")
- Remote Fully Functional Operator Station with Monitor and Label Printer
- Personal Pause Fob
- Automatic Lubrication System
- Control Nesting for Better Yield
Precision & Control
- Three-Dimensional Laser Compensated Axis Alignment
- Siemens Intelligent Servo Drives Throughout
- Thermwood SuperControl with Smart Router Technology
Support & Training
- Machine Training and Installation
- Free Lifetime Phone, Forum and Email Support
- Lifetime Machine Support from Thermwood's Legendary Service and Support
Product Downloads
