UPHOLSTERED FRAMES - HIGH-THROUGHPUT - MDF - PLYWOOD - NESTED BASED
ROLLER HOLD DOWN SERIES
Designed for the routing and stack machining of large sheet material such as fiberboard (MDF), particleboard and plywood
Automated Large Sheet Machining
The Roller Hold Down Series are high-performance systems for routing and stack machining large sheets of plywood, MDF, and particleboard.
Stack Machining
A standard roller hold-down system securely clamps stacked sheets, allowing for high-volume production of identical parts in a single run.
Heavy-Duty Power
Comes standard with a powerful 18 HP spindle, ensuring it can handle demanding cuts in tough materials with speed and ease.
Automation Ready
Can be equipped with an optional automatic load/unload system and lift table for continuous, unattended operation and maximum throughput.

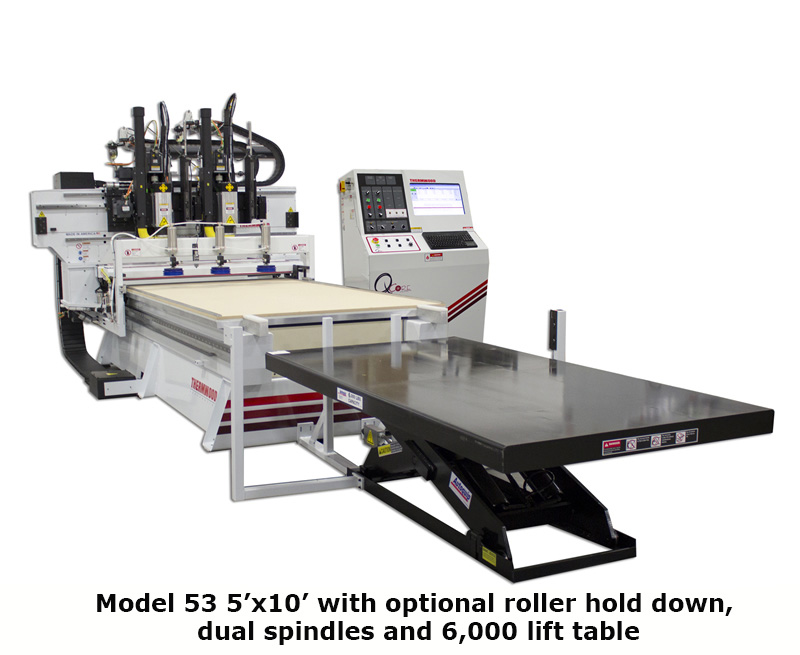

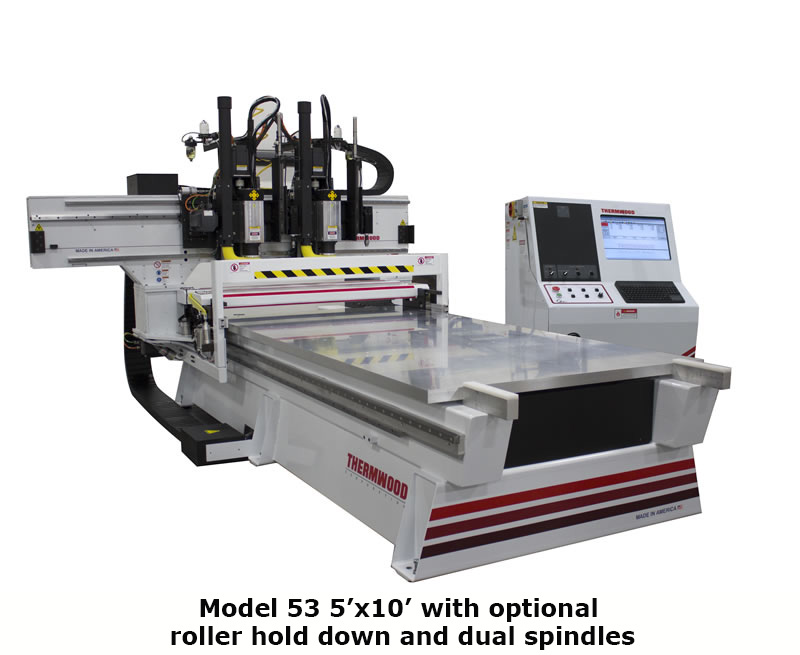

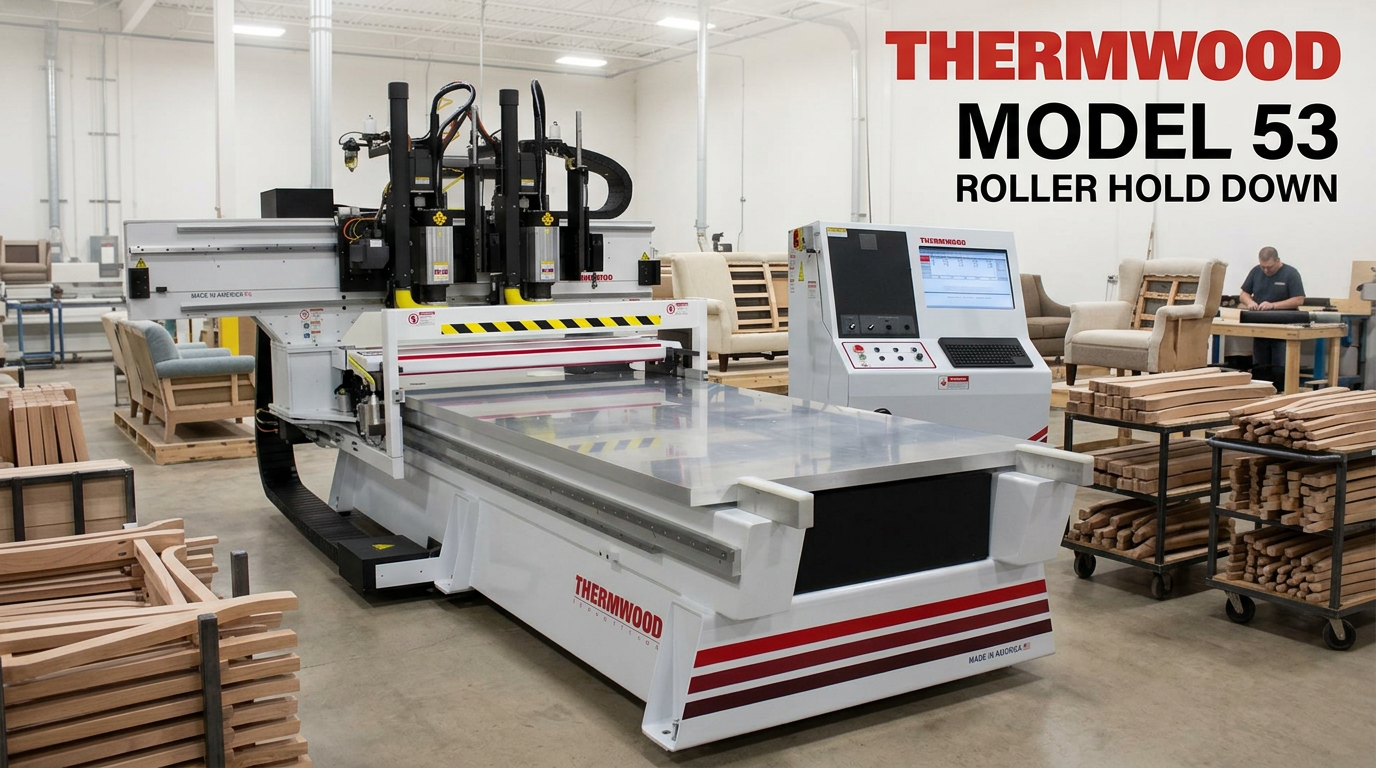

MODEL 53 ROLLER HOLD DOWN
Complete three axis CNC routing system to machine nested upholstered frame parts from sheet stock. The moving gantry, fixed table with roller hold down system is designed for routing and stack machining.
Available Table Sizes: 5'x10', 5'x12', 5'x16', 5'x20'
Standard Features
- 18 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Solid Aluminum Table with Moving Gantry
- Roller Hold Down System
- Three-Dimensional Laser Compensated Axis Alignment
- Control Nesting
- Siemens Intelligent Servo Drives Throughout
- Thermwood SuperControl
- Machine Training and Installation
Available Options
- Automatic Load/Unload System
- Automatic Lubrication
- Automatic Tool Length Measurement
- 2nd Head Spindle
- Pop-Up Pins
- Electric Drill
- Programmable Head Spacing

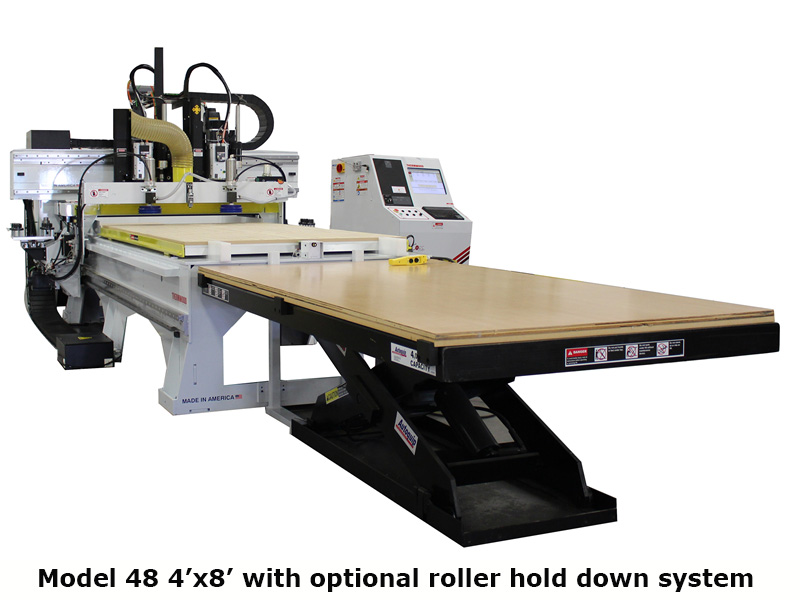

MODEL 48 ROLLER HOLD DOWN
A complete three-axis CNC routing system to machine nested upholstered frame parts from 4'x8' sheet stock. This moving gantry, fixed table with roller hold down system is designed for routing and stack machining and includes an automatic load/unload system.
Available Table Size: 4'x8'
Standard Features
- 18 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Solid Aluminum Table with Moving Gantry
- Roller Hold Down System
- Automatic Load/Unload System
- Table Dust Collection
- Programmable Side Bars & Locator Pin
- Three-Dimensional Laser Compensated Axis Alignment
- Control Nesting Software
- Siemens Intelligent Servo Drives Throughout
- Thermwood SuperControl
- Machine Training and Installation
Available Options
- Dual 18 HP Spindles
- Dual Electric Drills
