HARDWOODS - SOFTWOODS - FIBERBOARD (MDF) - PARTICLEBOARD - PLASTICS - ALUMINUM
MODEL 63
Large bed CNC router with moving bridge & stationary table designed for two and three dimensional machining of large composite parts & three dimensional patterns.
Large Scale Machining Power
The Model 63 is a powerful, large-format platform for demanding 2D and 3D applications in composites, patterns, and more.
Expansive Work Area
Features a moving bridge and stationary table with lengths up to 100 feet, ideal for oversized parts and patterns.
Versatile Machining Capability
Designed for two and three dimensional machining of large parts, from flat sheets to complex shapes across a wide range of materials.
Highly Configurable
Customize your machine with options like a second spindle, extended Z-axis, and various tool changers for ultimate flexibility.
MODEL 63
Large bed CNC router with moving bridge & stationary table designed for two and three dimensional machining of large composite parts & three dimensional patterns.

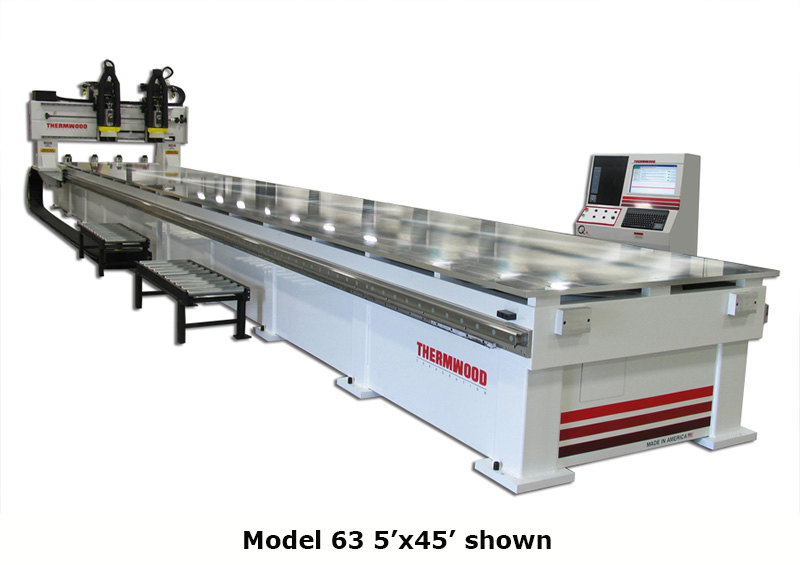

Available Table Sizes: 5'x10', 5'x20', 5'x40', with table extensions available up to 100'
Standard Features
- 12 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Solid Aluminum Table with Moving Gantry
- 24" Vertical Extended Z Axis
- Three-Dimensional Laser Compensated Axis Alignment
- Control Nesting
- Intelligent Servo Drives Throughout
- Thermwood SuperControl
- Machine Training and Installation
- Free Phone and Forum Support
Available Options
- 18 HP HSD Spindle

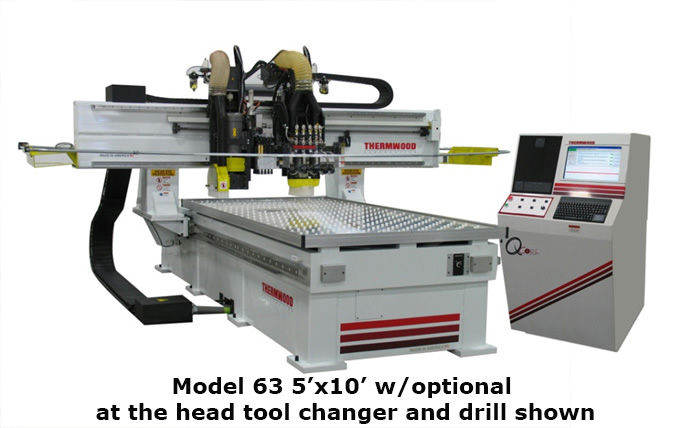

- At the head Automatic Tool Changer
- 10 Position Rotary Tool Changer
- 2nd Head Spindle
- Electric Drill
- Automatic Lubrication
- Automatic Tool Length Measurement
Product Downloads
Model 63 Frequently Asked Questions
What is the Thermwood Model 63 CNC router used for?
The Thermwood Model 63 is a large bed CNC router designed for two and three dimensional machining of large composite parts, three dimensional patterns, and large sheet materials including hardwoods, softwoods, MDF, particleboard, plastics, and aluminum.
What table sizes are available for the Thermwood Model 63?
The Model 63 is available in 5'x10', 5'x20', and 5'x40' table sizes, with table extensions available up to 100 feet in length, making it one of the largest CNC router platforms Thermwood offers.
What spindle does the Thermwood Model 63 use?
The Model 63 comes standard with a 12 HP HSD Spindle running at 3,000 to 24,000 RPM. An 18 HP HSD Spindle is available as an option for more demanding machining applications.
What is the Z-axis clearance on the Thermwood Model 63?
The Thermwood Model 63 features a standard 24 inch vertical extended Z axis, providing ample clearance for machining tall three dimensional parts, patterns, and molds.
What tool changer options are available on the Thermwood Model 63?
The Model 63 offers an optional At-the-Head Automatic Tool Changer and a 10 Position Rotary Tool Changer, along with an optional second head spindle and electric drill for added versatility.
What industries use the Thermwood Model 63?
The Model 63 is used across industries requiring large-format machining including aerospace, composite fabrication, marine and boat building, three dimensional pattern and mold making, military and defense, wind energy, and architectural millwork.
