MODEL 45
Heavy-Duty 3-Axis CNC Router
Engineered for high-performance nested-based production, this system is available in single or dual spindle configurations with an optional rotary axis. It is the ideal solution for processing plastic sheets, solid surface materials, non-ferrous metals, and composites.
Heavy-Duty Flexibility
The Model 45 is a robust platform that can be configured for a huge variety of demanding applications.
Advanced Materials
Designed from the ground up to machine composites, tooling boards, aluminum, and plastics with precision and reliability.
Configurable Power
Available with single or dual spindles up to 18 HP, an optional rotary axis, and tool changers to match your exact production needs.
Proven Reliability
Built on a heavy-duty, stress-relieved steel frame and powered by the legendary Thermwood SuperControl for years of dependable service.
MODEL 45

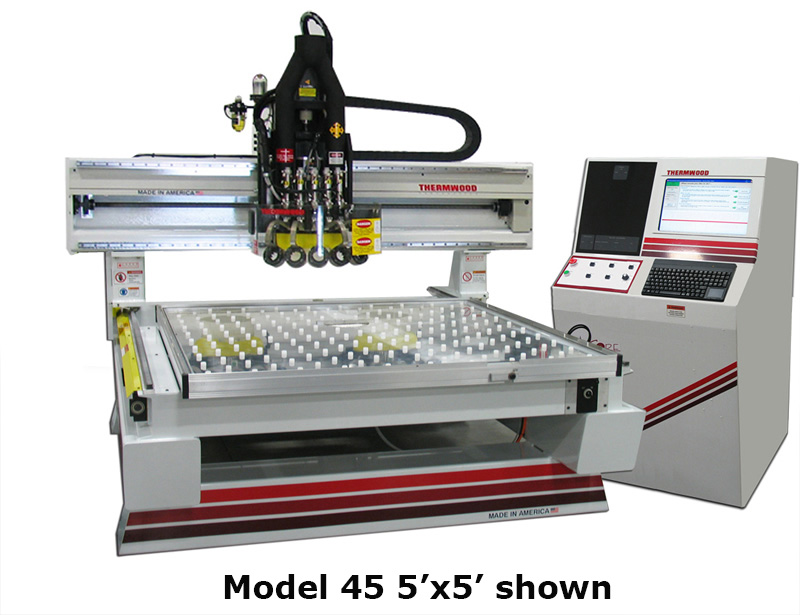

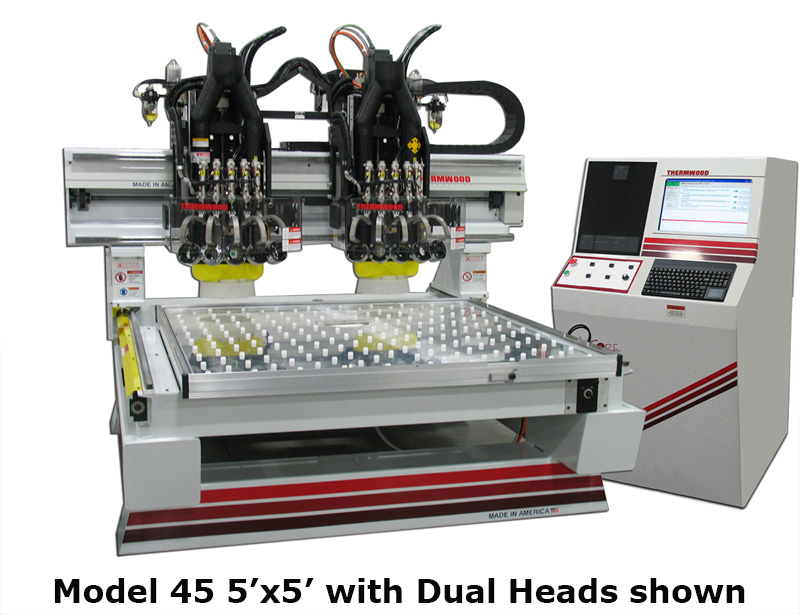

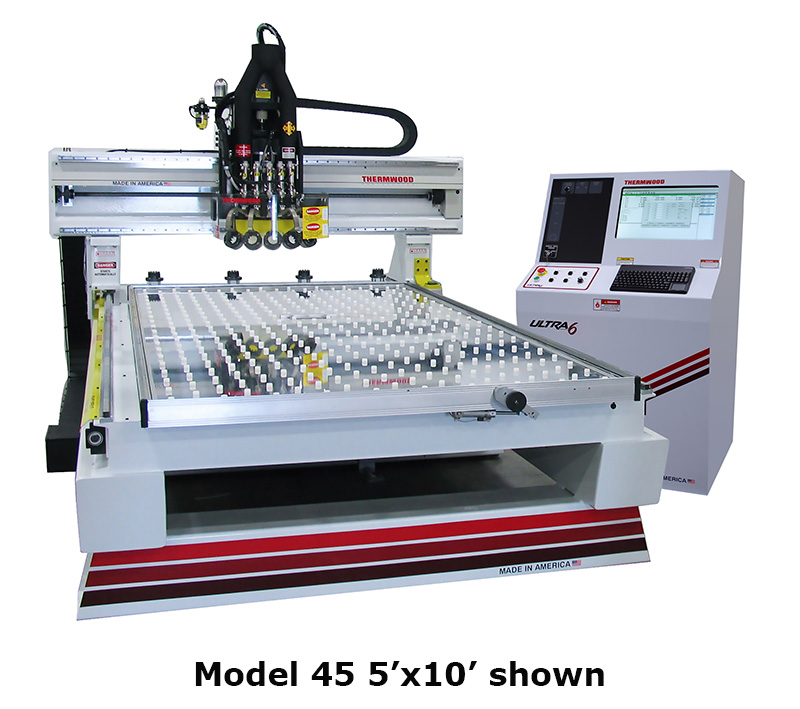

Heavy-duty three axis designed for composites, tooling boards, plastics, aluminum, cabinets, wood and nested base panels. Available in either single or dual spindles with optional rotary axis. Available Table Sizes: 5'x'5, 5'x10', 5'x12', 6'x12' and 7'x12'
Core Performance
- 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP
- Fixed Steel High Flow Table with Moving Gantry
- 4 Position Bar Style Automatic Tool Changer
- Control Nesting
Automation & Efficiency
- Optional Rotary Axis
- Aggregate Tooling Options
- 9 Position Drill Bank
- 5 Position At-The-Head Tool Changer
- 7 Position Bar Style Automatic Tool Changer
- At the Head Automatic Tool Changer
- Rotary Axis (accepts stock from 8" diameter up to 56" in length)
- Multi-Function Table (pod system capable)
- Extended Z Clearance and Stroke
- Automatic Tool Length Sensor
Precision & Control
- Three-Dimensional Laser Compensated Axis Alignment
- Intelligent Servo Drives Throughout
- Thermwood SuperControl
Support & Training
- Machine Training and Installation
