MODEL 65
Large bed 5-axis CNC router with moving bridge and stationary table for two and three dimensional machining of large composite parts and three dimensional patterns.
Large Scale Machining Power
The Model 65 is a powerful, large-format 5-axis platform built for demanding composite, pattern, and trimming applications.
Expansive Work Area
Moving bridge and stationary table in lengths from 5'x10' up to 100 feet. Handles oversized parts and long composite panels that smaller machines simply cannot accommodate.
True 5-Axis Capability
Machines complex contoured surfaces, trimmed composite parts, and three dimensional patterns in a single setup. The standard 24" extended Z axis provides clearance for tall workpieces.
Highly Configurable
Available with an 18 HP spindle, rotary tool changer, second head spindle, electric drill, and automatic lubrication. Configure the machine to match your exact production requirements.
MODEL 65

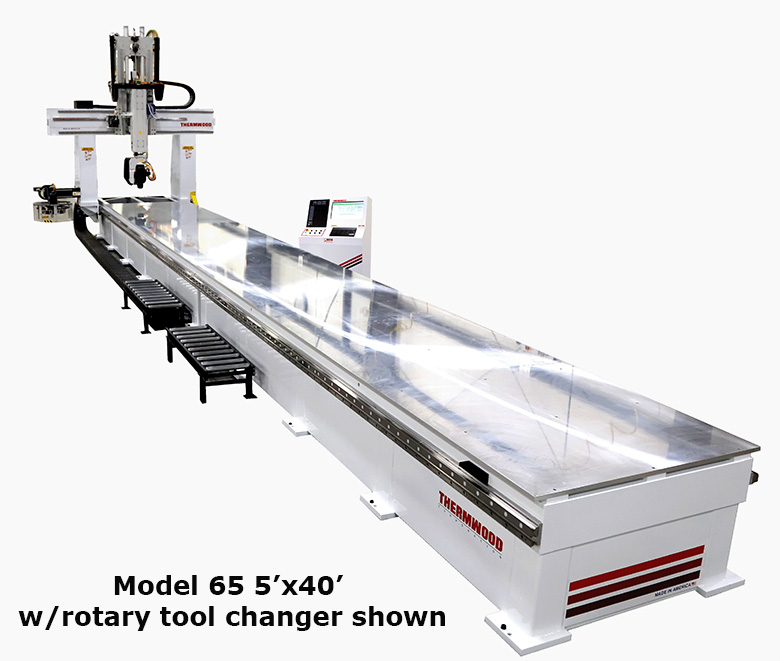

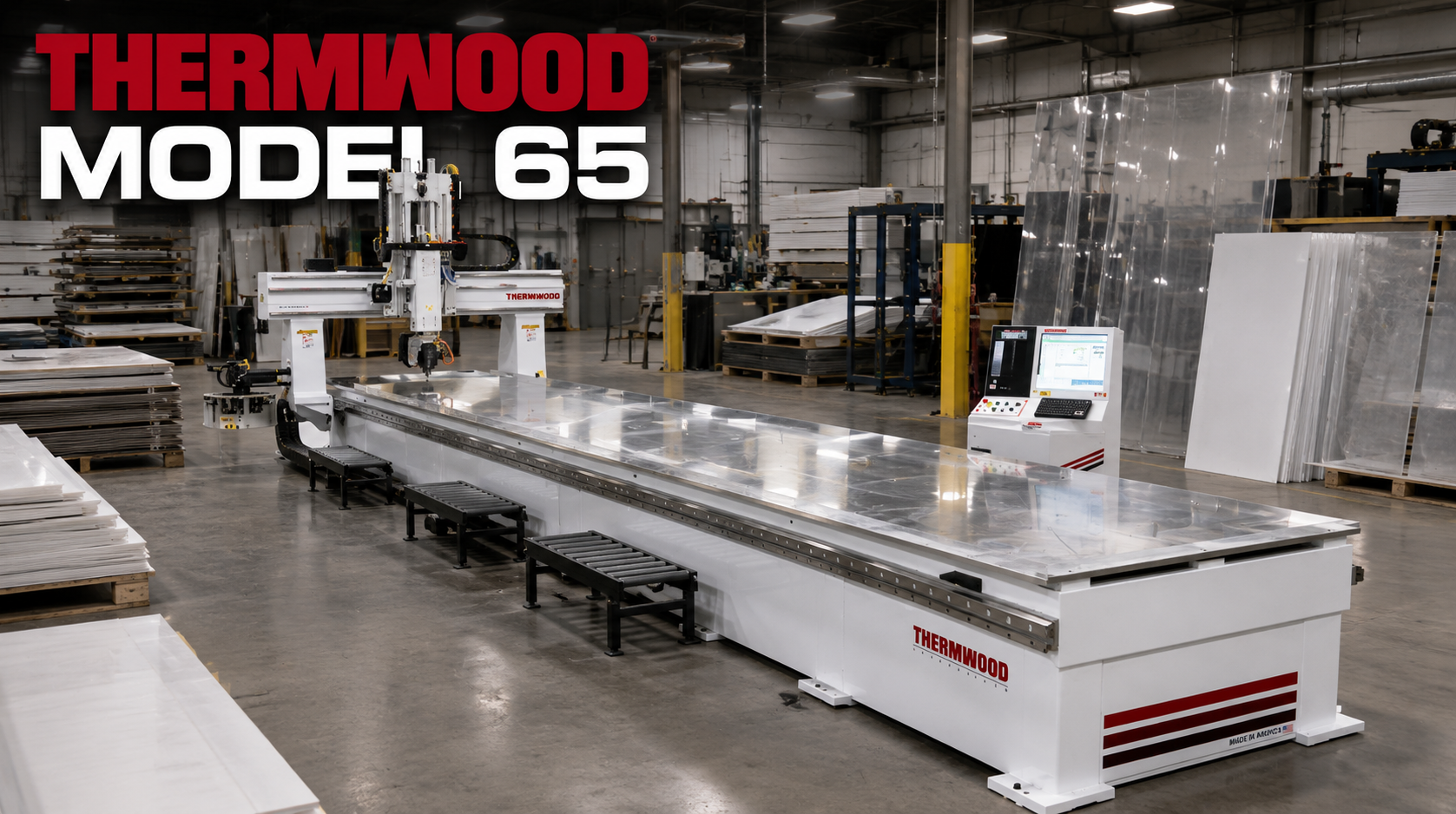

Large bed five-axis CNC router with moving bridge and stationary table designed for two and three dimensional machining of large composite parts and three dimensional patterns. Available Table Sizes: 5'x10', 5'x20', 5'x40', with table extensions available up to 100'.
Standard Features
- 12 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Solid Aluminum Table with Moving Gantry
- 24" Vertical Extended Z Axis
- Three-Dimensional Laser Compensated Axis Alignment
- Control Nesting
- Intelligent Servo Drives Throughout
- Thermwood SuperControl
- Machine Training and Installation
- Free Phone and Forum Support
Available Options
- 18 HP HSD Spindle
- At-the-Head Automatic Tool Changer
- 10 Position Rotary Tool Changer
- 2nd Head Spindle
- Electric Drill
- Automatic Lubrication
- Automatic Tool Length Measurement
Product Downloads
Model 65 Frequently Asked Questions
What is the Thermwood Model 65 CNC router used for?
The Thermwood Model 65 is a large bed five-axis CNC router designed for two and three dimensional machining of large composite parts, three dimensional patterns, and large sheet materials including hardwoods, softwoods, MDF, particleboard, plastics, and aluminum.
What is the difference between the Thermwood Model 65 and Model 63?
The primary difference is that the Model 65 is a five-axis CNC router, while the Model 63 is a three-axis router. Both share a similar large bed moving bridge and stationary table design with table sizes from 5'x10' up to 100 feet, a standard 12 HP HSD spindle, and 24 inch extended Z axis. The Model 65's five-axis capability allows it to machine complex three-dimensional shapes and contoured surfaces that a three-axis machine cannot.
What table sizes are available for the Thermwood Model 65?
The Model 65 is available in 5'x10', 5'x20', and 5'x40' table sizes, with table extensions available up to 100 feet in length, making it one of the largest 5-axis CNC router platforms Thermwood offers.
What spindle does the Thermwood Model 65 use?
The Model 65 comes standard with a 12 HP HSD Spindle running at 3,000 to 24,000 RPM. An 18 HP HSD Spindle is available as an option for more demanding machining applications.
What is the Z-axis clearance on the Thermwood Model 65?
The Thermwood Model 65 features a standard 24 inch vertical extended Z axis, providing ample clearance for machining tall three dimensional parts, patterns, molds, and complex composite components.
What tool changer options are available on the Thermwood Model 65?
The Model 65 offers an optional At-the-Head Automatic Tool Changer and a 10 Position Rotary Tool Changer, along with an optional second head spindle and electric drill for added production flexibility.
What industries use the Thermwood Model 65?
The Model 65 is used across industries requiring large-format five-axis machining including aerospace, composite fabrication, marine and boat building, three dimensional pattern and mold making, military and defense, wind energy, and architectural millwork.
