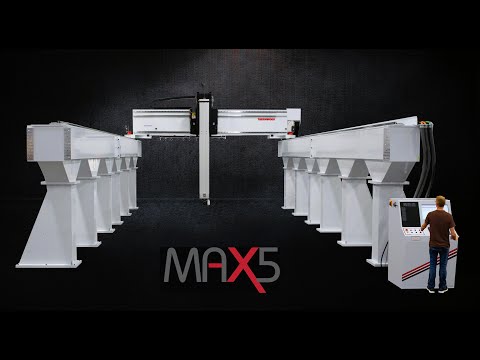

MAX5
Heavy-Duty, High-Clearance 5-Axis CNC Router
Engineered for unyielding power and precision, it is the ultimate solution designed for machining large and extremely large complex three-dimensional components.
Explore the MAX5
Engineered for industries that demand size and strength, the Thermwood MAX5 is your go-to solution for the three-dimensional machining of large to extremely large components. Whether you're shaping massive molds, marine components, or complex construction or aerospace elements, the MAX5 delivers unmatched power and durability.
Massive Scale & Precision
Offering a massive 9' Vertical Z Axis and available in widths of 10' or 15' and lengths up to 60', the MAX5 processes complex geometries cleanly and efficiently.
Unmatched Power
Features a 17 HP Liquid-Cooled Spindle and machine indexing speeds up to 2,100 IPM, designed to perform in the most demanding high-throughput environments.
Advanced Structural Integrity
Leverages advanced 3D modeling and Finite Element Analysis (FEA). Engineered with stress-relieved steel vertical support columns and gantry weldments for rock-solid stability.
Available Sizes: Width 10' or 15' - Lengths up to 60'
Core Features
- 9' Vertical Z Axis
- 17 HP Liquid-Cooled Spindle
- 6-Position Automatic Tool Changer (Standard) or expandable up to 18 Tooling Positions
- Automatic High-Tolerance Tool Length & Diameter Measurement
- Automatic Lubrication System
- Thermwood SuperControl with Smart Router Technology
- Machine Indexing Speeds up to 2,100 IPM
- Engineered Steel Vertical Support Columns and Stress-Relieved Gantry Weldments
- Precision-Machined Steel Plates & Internal Steel Bracing
Available Options & Support
- Optional Floating Work Table with Drilled and Tapped Aluminum Surface
- Machine Training and Installation
- Free Lifetime Phone, Forum, and Email Support
- Lifetime Machine Support from Thermwood's Legendary Service Team
Product Downloads
MAX5 Frequently Asked Questions
What is the Thermwood MAX5 CNC router?
The Thermwood MAX5 is a heavy-duty, high-clearance five-axis CNC router engineered for machining large and extremely large complex three-dimensional components. It features a 9-foot vertical Z axis, a 17 HP liquid-cooled spindle, machine indexing speeds up to 2,100 IPM, and is available in widths of 10 or 15 feet with lengths up to 60 feet.
What sizes are available for the Thermwood MAX5?
The Thermwood MAX5 is available in widths of 10 feet or 15 feet, with lengths up to 60 feet. Its 9-foot vertical Z axis provides exceptional clearance for machining the tallest and most complex large-scale components.
What spindle does the Thermwood MAX5 use?
The MAX5 features a 17 HP liquid-cooled spindle, providing sustained high-power cutting performance for demanding large-scale machining of composites, engineering plastics, non-ferrous metals, and other tough materials.
How fast does the Thermwood MAX5 index?
The Thermwood MAX5 achieves machine indexing speeds of up to 2,100 IPM, enabling high-throughput production even when machining extremely large and complex parts.
What tool changer options are available on the Thermwood MAX5?
The MAX5 comes standard with a 6-position automatic tool changer that is expandable up to 18 tooling positions. It also includes standard automatic high-tolerance tool length and diameter measurement for precise tool management during complex five-axis operations.
What makes the Thermwood MAX5 structurally different from other CNC routers?
The MAX5 is engineered using advanced 3D modeling and Finite Element Analysis (FEA) for maximum structural integrity. It features stress-relieved steel vertical support columns and gantry weldments, precision-machined steel plates, and internal steel bracing, all designed to maintain rock-solid stability during the machining of extremely large and heavy components.
What industries use the Thermwood MAX5?
The MAX5 is designed for industries requiring the machining of very large complex components including aerospace, marine, composite fabrication, wind energy, military and defense, large mold and pattern making, automotive, and construction applications.
Does the Thermwood MAX5 include support and training?
Yes. Every MAX5 includes machine training and installation, free lifetime phone, forum, and email support, and lifetime machine support from Thermwood's service and support team.
