HARDWOODS - SOFTWOODS - FIBERBOARD (MDF) - PARTICLEBOARD - PLASTICS - ALUMINUM

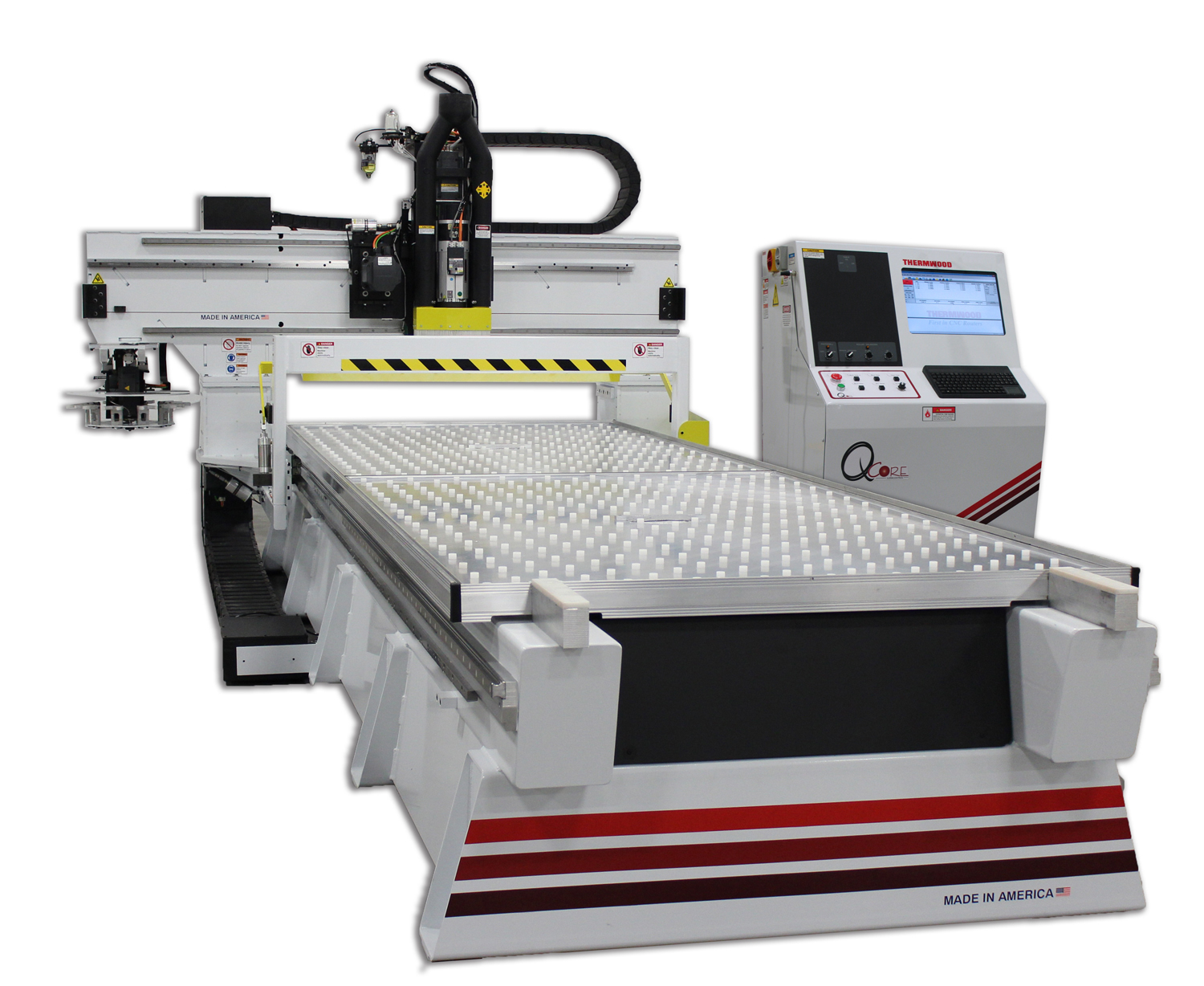

MODEL 53
Moving gantry, fixed table, three-axis CNC router designed for the routing and stack machining of large sheet material.

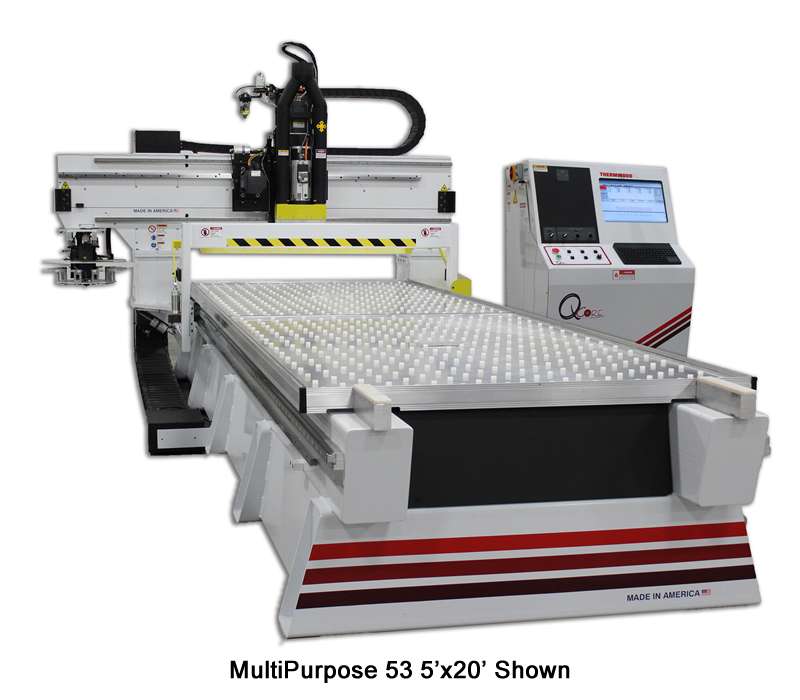

Model 53 5'x20'
Large Format Stack Machining
The Model 53 is engineered for high-volume routing and stack machining of large sheet material with optional automation.
Stack Materials
Designed to process large, stacked sheets with an optional roller hold-down system, dramatically increasing throughput.
Automate Your Workflow
Optional automatic load/unload systems allow for continuous, unattended operation, maximizing your productivity.
Massive Work Area
With table sizes up to 5'x20', the Model 53 can handle exceptionally large parts and full production runs with ease.
MODEL 53
Moving gantry, fixed table, three-axis CNC router designed for the routing and stack machining of large sheet materials such as hardwoods, softwoods, fiberboard (MDF), particleboard, plastics and aluminum.

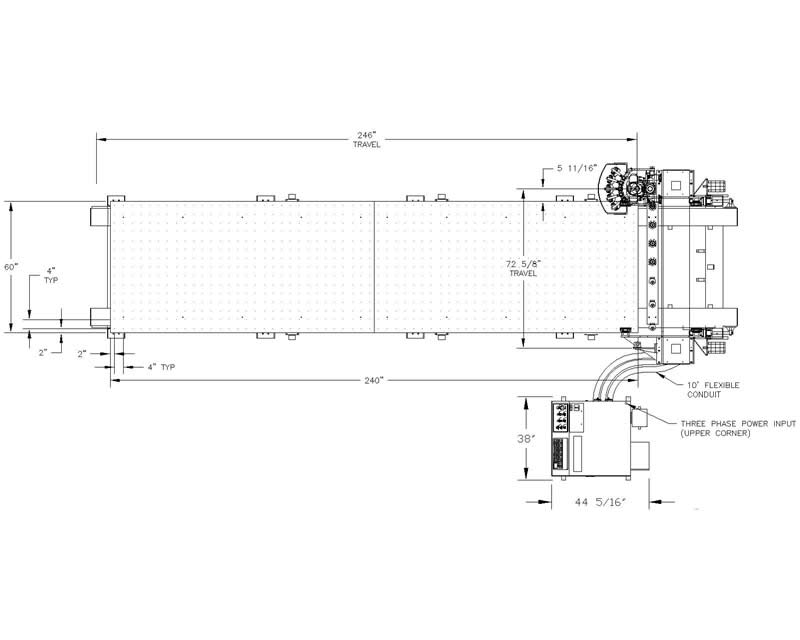

Available Table Sizes: 5'x10', 5'x12', 5'x16', 5'x20'
Standard Features
- 12 HP HSD Spindle (3,000-24,000 RPM)
- Fixed Solid Aluminum Table with Moving Gantry
- Three-Dimensional Laser Compensated Axis Alignment
- Control Nesting
- Intelligent Servo Drives Throughout
- Thermwood SuperControl
- Machine Training and Installation
- Free Phone and Forum Support
Available Options
- 18 HP HSD Spindle
- Roller Hold Down System
- Automatic Load/Unload System
- Automatic Lubrication
- Automatic Tool Length Measurement
Product Downloads
Model 53 Frequently Asked Questions
What is the Thermwood Model 53 CNC router used for?
The Thermwood Model 53 is a moving gantry, fixed table, three-axis CNC router designed for the routing and stack machining of large sheet materials including hardwoods, softwoods, fiberboard (MDF), particleboard, plastics, and aluminum.
What table sizes are available for the Thermwood Model 53?
The Model 53 is available in four table sizes: 5'x10', 5'x12', 5'x16', and 5'x20'.
What spindle does the Thermwood Model 53 use?
The Model 53 comes standard with a 12 HP HSD Spindle running at 3,000 to 24,000 RPM. An 18 HP HSD Spindle is available as an option for more demanding applications.
Can the Thermwood Model 53 stack machine materials?
Yes. The Model 53 is specifically designed for routing and stack machining of large sheet materials. An optional roller hold-down system is available to securely hold stacked sheets during machining, dramatically increasing throughput.
Does the Thermwood Model 53 support automatic loading and unloading?
Yes. An optional automatic load/unload system is available for the Model 53, enabling continuous, unattended operation and maximizing production efficiency.
What is the largest table size available on the Thermwood Model 53?
The largest table size available on the Thermwood Model 53 is 5'x20', making it suitable for machining exceptionally large parts and full production runs of large sheet material.
