A direct driven spindle with a speed range up to 24,000 RPM.  The high-frequency spindle is cooled with an electric fan for quieter running and contains ceramic bearings for longer life and for less maintenance.  The 12 HP (9kw) spindle provides the user with a heavy duty, precision spindle which provides high performance and reliability. Standard

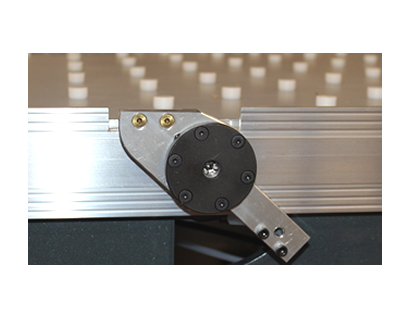

Guides mounted to the table perimeter for locating sheets of material.  They are flipped to the up position to lacate the material and then retracted to clear during the machining cycle. Standard

Provides an automatic method of measuring tool length and entering tool length offset numbers into the control.  This automatically compensates for the new tool length, eliminating the need to precisely locate the cutter bit.  It provides a highly accurate method of adjusting tool length for pocketing or profile edges. Standard

The machine is calibrated in all axes using a three-dimensional volumetric laser interferometer. This type of calibration is the most sophisticated and most accurate available today resulting in machines that are extremely accurate. Others may use single axis calibration (not nearly as good) and others may not calibrate at all. Uncalibrated machines can generate dimensional errors that can become a real problem. Standard

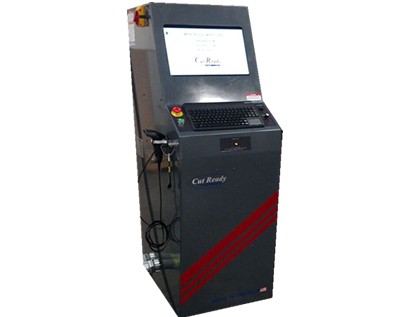

The Thermwood SuperControl is a feature rich, high performance CNC control system. Thermwood, the only major CNC router manufacturer that designs and builds its own CNC control, is a leader in implementing advanced control technology. As a result, Thermwood has been granted more patents on CNC router technology than all other CNC router manufactures in the world, combined. Standard

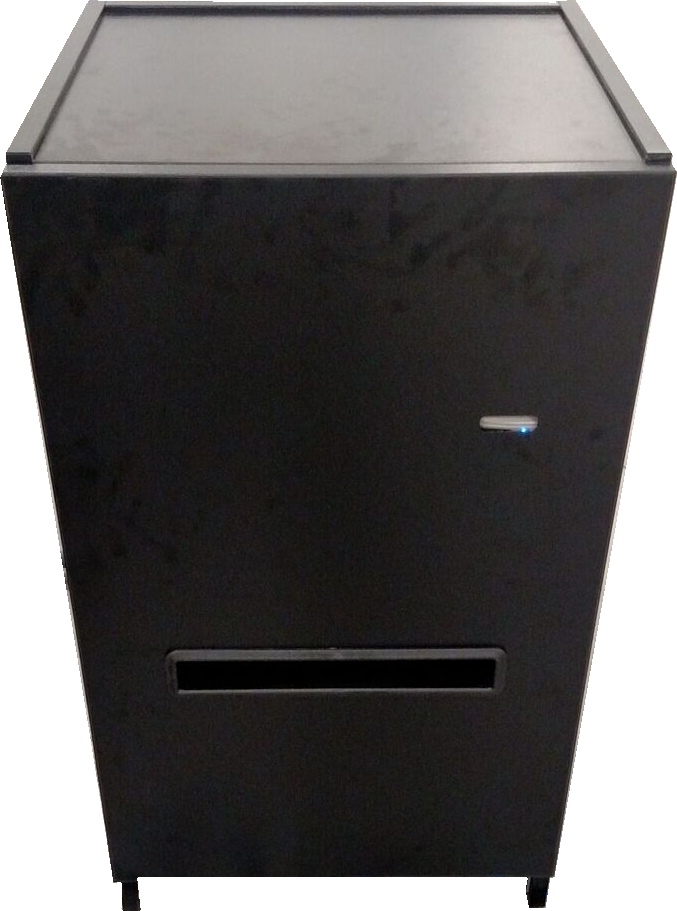

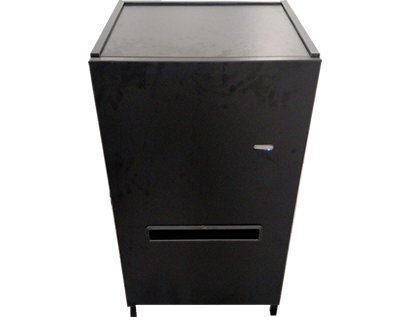

Printer box with sheet and label printers for part identification. Printer system accepts information from all cabinet software capable of producing Job Level Interface output using the Thermwood QCore SuperControl nesting capabilities. The printers also operate using input from CAD software that generates properly formatted DXF format files. Also has room to store extra tools.  Standard

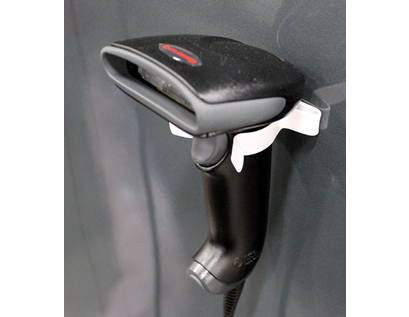

Allows you to identify or remake parts. You do not need to develop a CNC program just to remake parts. At the end of a job, simply scan the label on any part or parts and it nests them on the remaining material and cuts them. You can remake parts from a previous job the same way..  Standard

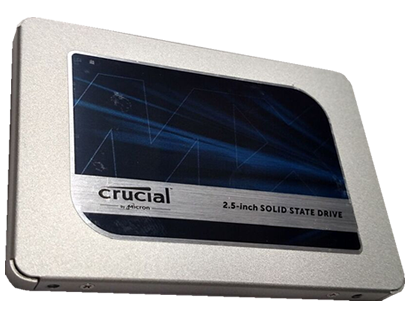

A superior type of mass storage device with no moving parts, (which is why they are called solid state drives or SSDs. SSDs store data using flash memory.  Standard

A user-friendly nesting package integrated into the Thermwood control to nest various parts into sheet stock, thus creating a better yield. Also accepts layered DXF files.  Standard

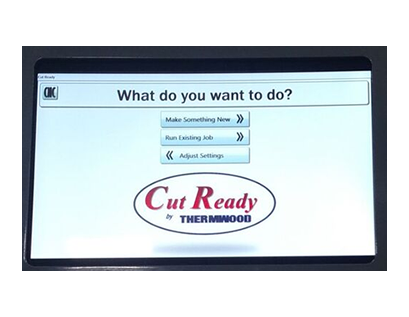

Modern, touch screen control for quick access to your machine.  Standard

Standard

Thermwood has developed a remote wireless "Pause Button" which can be clipped to a belt or pocket.  Pressing this button stops the machine in place. Standard

Universal Vacuum System is a unique method for holding panels to the table top for machining.  A sheet of particleboard or low density MDF is used as a work surface on the top fo the table.  The high flow pump vacuums through the work surface, holding the part to the table.  Pumps are available as 15HP (11kw).  Conventional vacuum also available. Standard

We are by your side during your 5 Day CNC Access training course at our modern, state of the art center (devoted specifically to educating our customers). This is, by far, the fastest and most efficient way to learn. Our machine operator/programmer courses are located adjacent to the machine training lab, where students complete the prescribed projects on a specific training machine utilized only for training purposes. Then, when it comes time for practical applications on a full sized machine, Thermwood's training lab is equipped with a CabinetShop 45 outfitted with all major options and features. Real production-type parts are cut. What a confidence builder!  Standard

Placed around the front perimeter of the machine.  Once the mat is stepped on, the machine will stop operation. Optional

Provides positive pressure, air/oil lubrication to the linear trackway bearings and the ball screws  This has two major benefits:  First, it eliminates the lubrication points which must be servided each shift.  Second, it provides positive pressure to the bearing, preventing contamination from entering the bearing.  This allows the machine to function in difficult, dusty or hostile environments. Optional

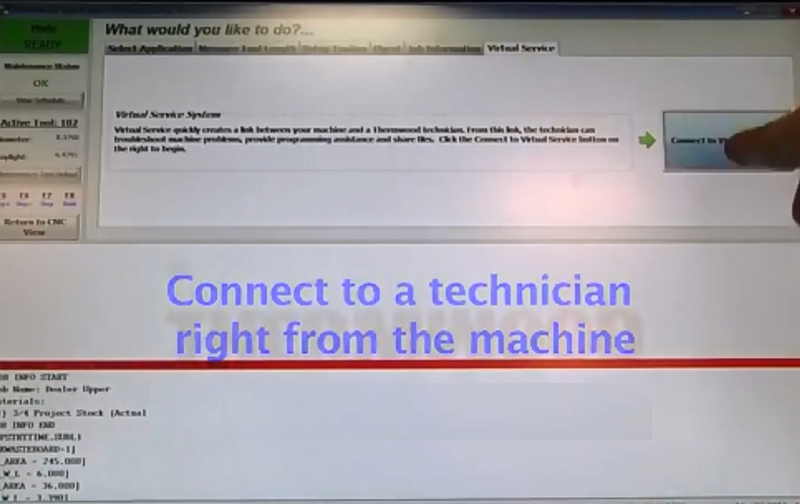

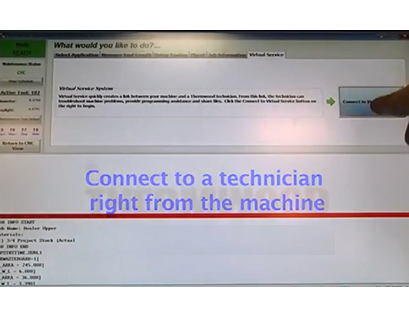

When the "Virtual Service" link is established, the customer can see and talk to the Thermwood service technician and the service technician can see, not only the customer, but also all of the critical parameters of the control. It essentially gives the service technician as much information as standing in front of the customer's control itself. Through this link, the control can be diagnosed in real-time while programs are being executed and corrections can be made. Programming errors can be found and corrected on-line.  Optional
